Basketball Court, Stage & Coffee Shop Tensile Shade Structure - Yingde, China


  •  Date Completed  November, 2018
     Location  Yingde, China
     Project Area  900 square meters
     Membrane Material  PVDF
     Fabric Color  White
     Shape  Arc, Umbrella
     Structure  Q235 Steel, Hot Dip Galvanized
     Warranty  20 Years
     Delivery Time  About 30 Days after confirm deposit
     Payment  T/T, LC
     Brand  BDiR
     Place of Origin  Shenzhen, China

  • INQUIRY NOW
Basketball Court, Stage & Coffee Shop Tensile Shade Structure - Yingde, China

DESCRIPTION

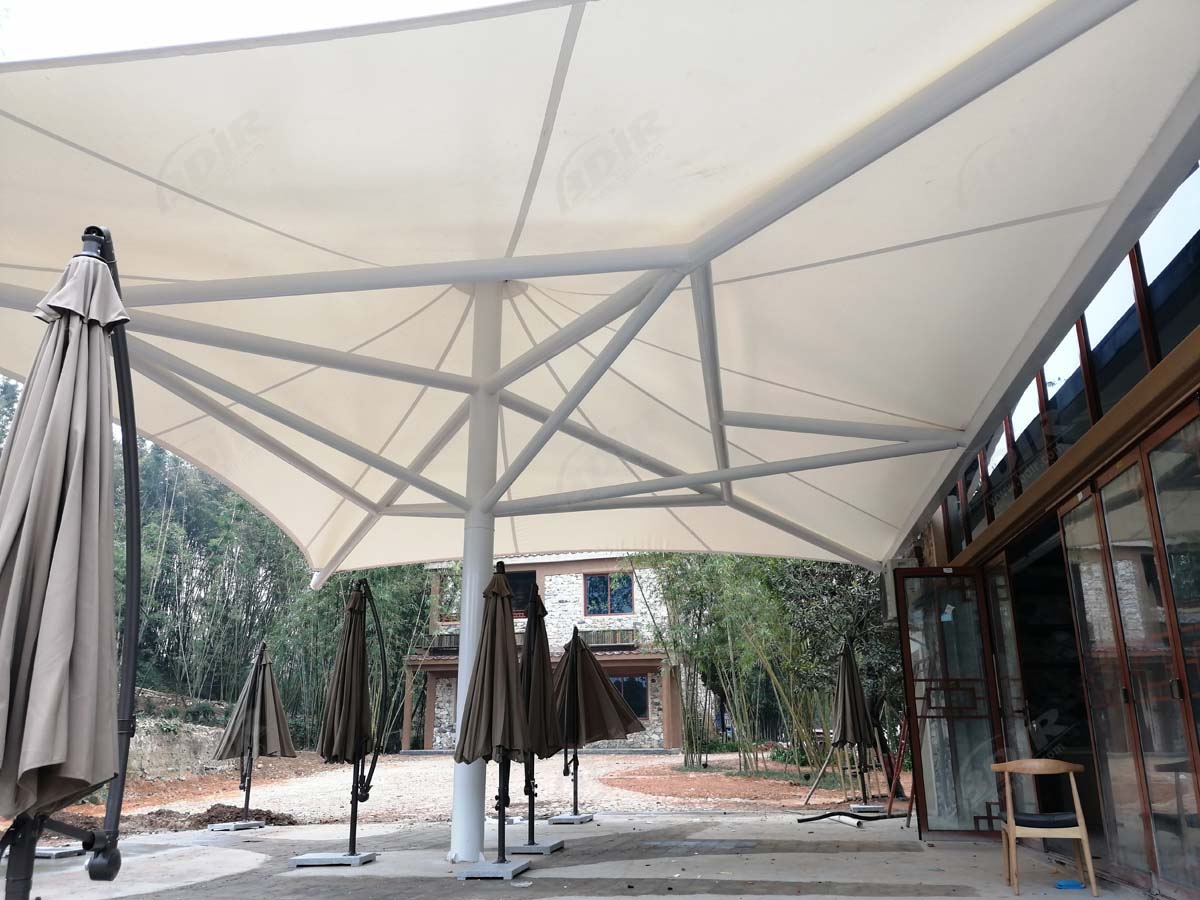

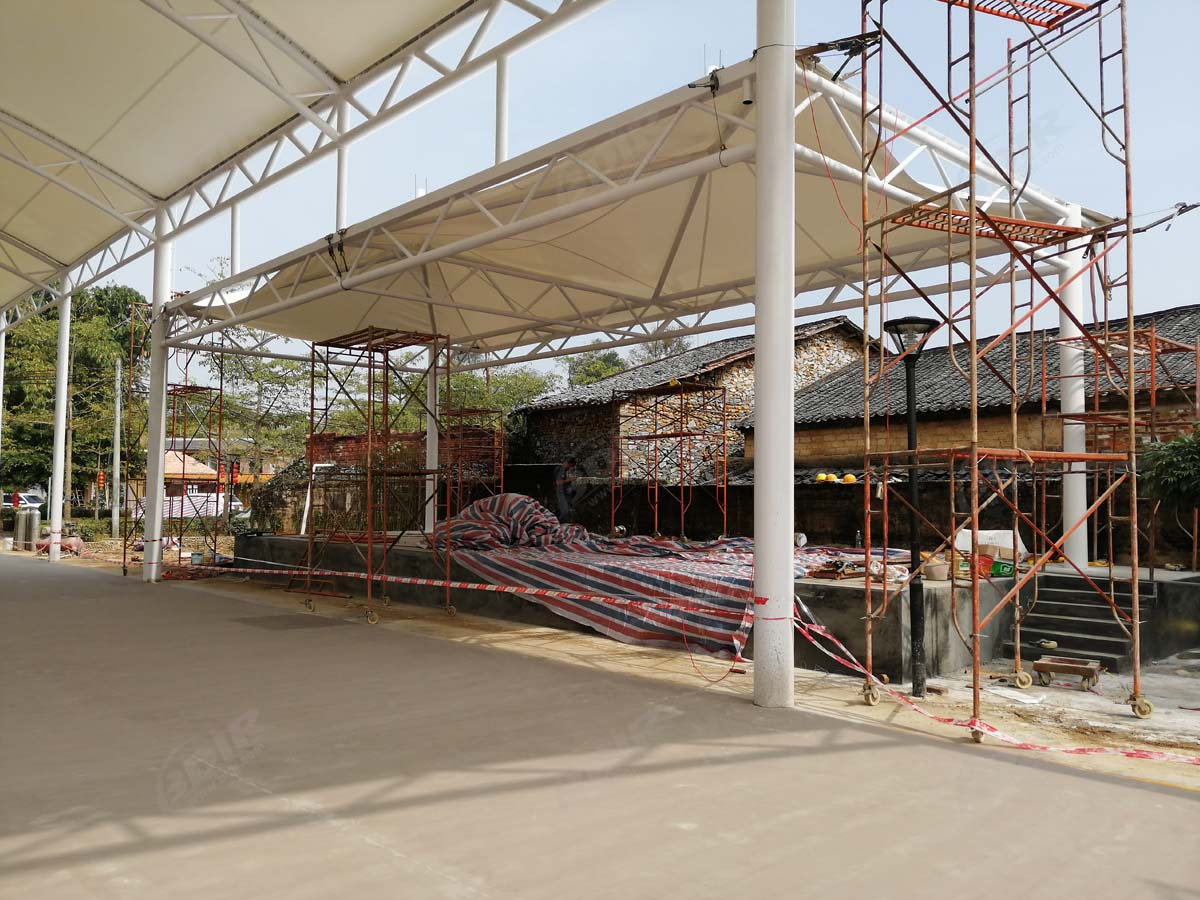

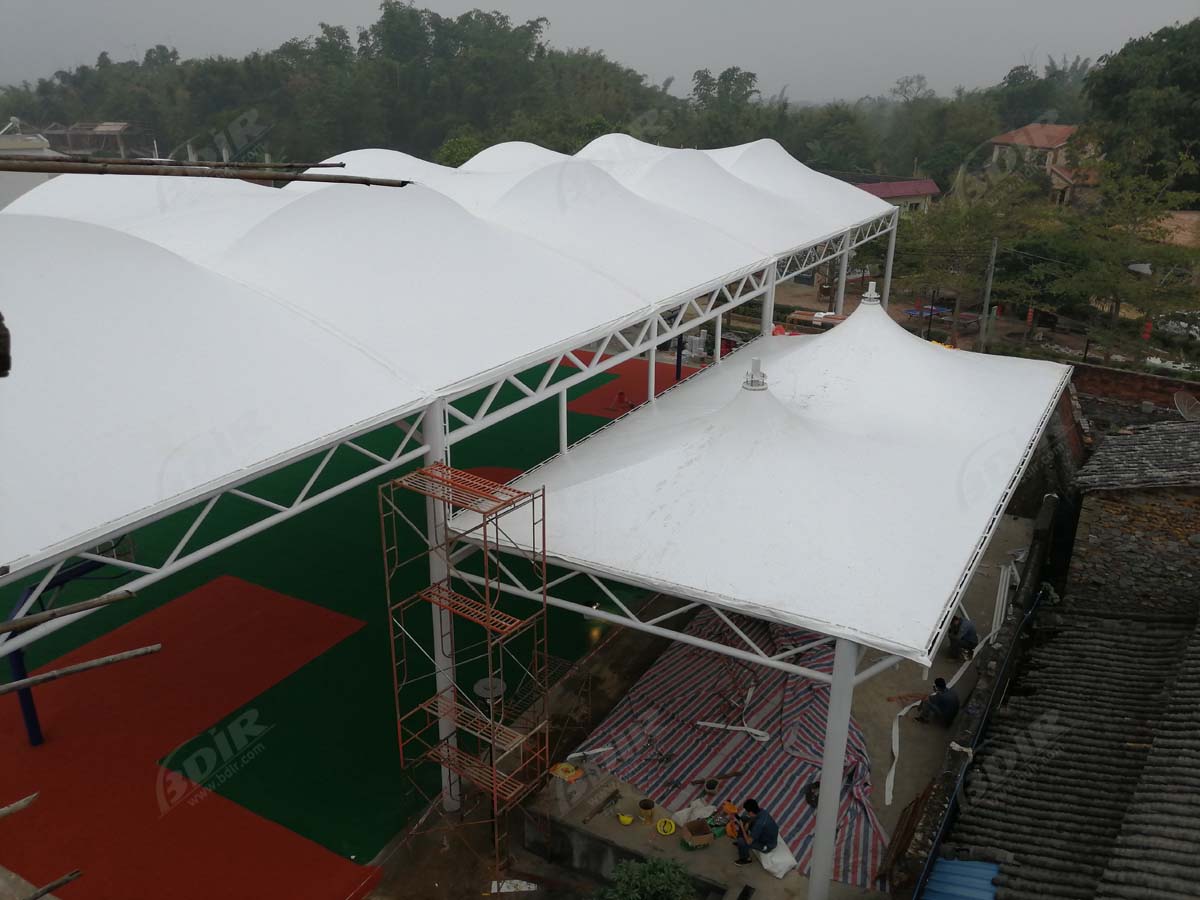

In November 2018, BDiR completed this basketball court and stage tensile structure, cafe umbellate shape fabric structure project in Yingde City, Guangdong Province, China.

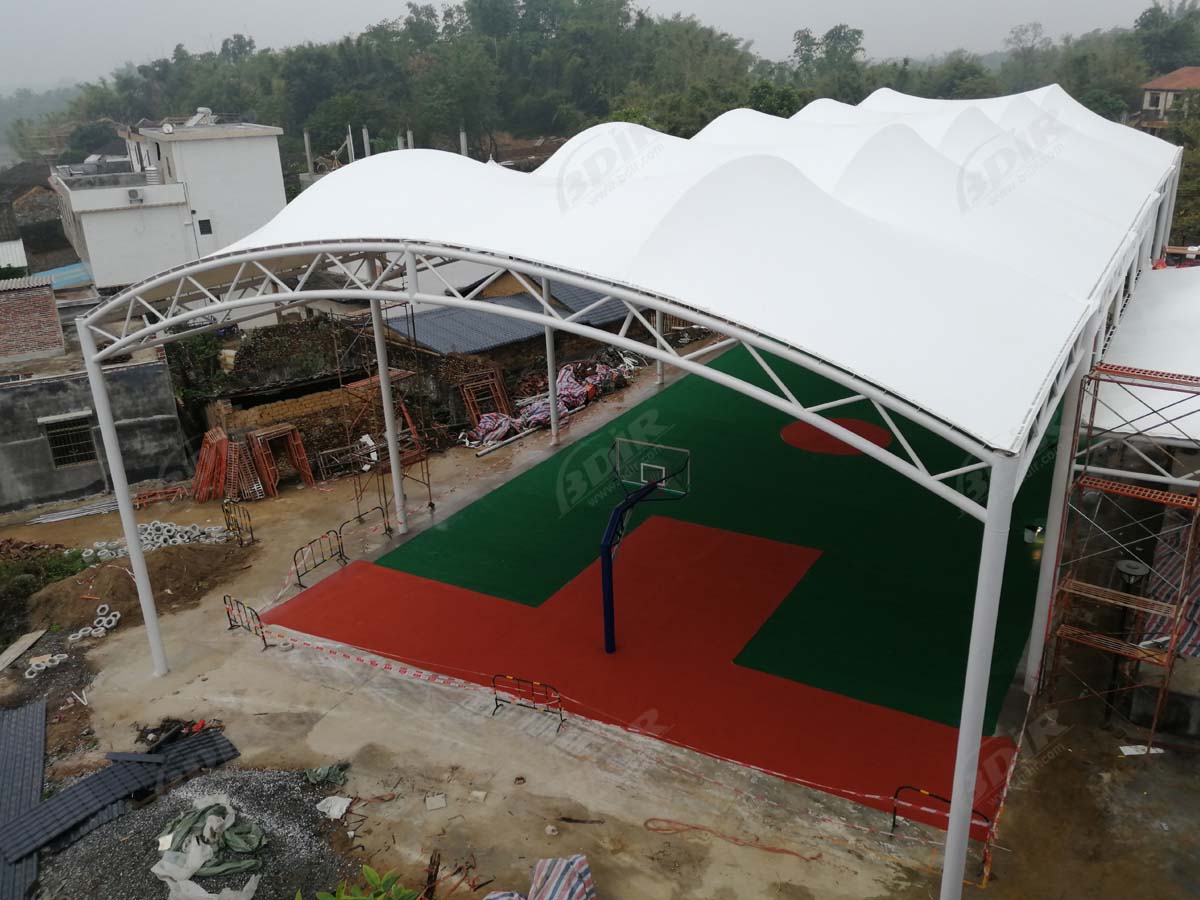

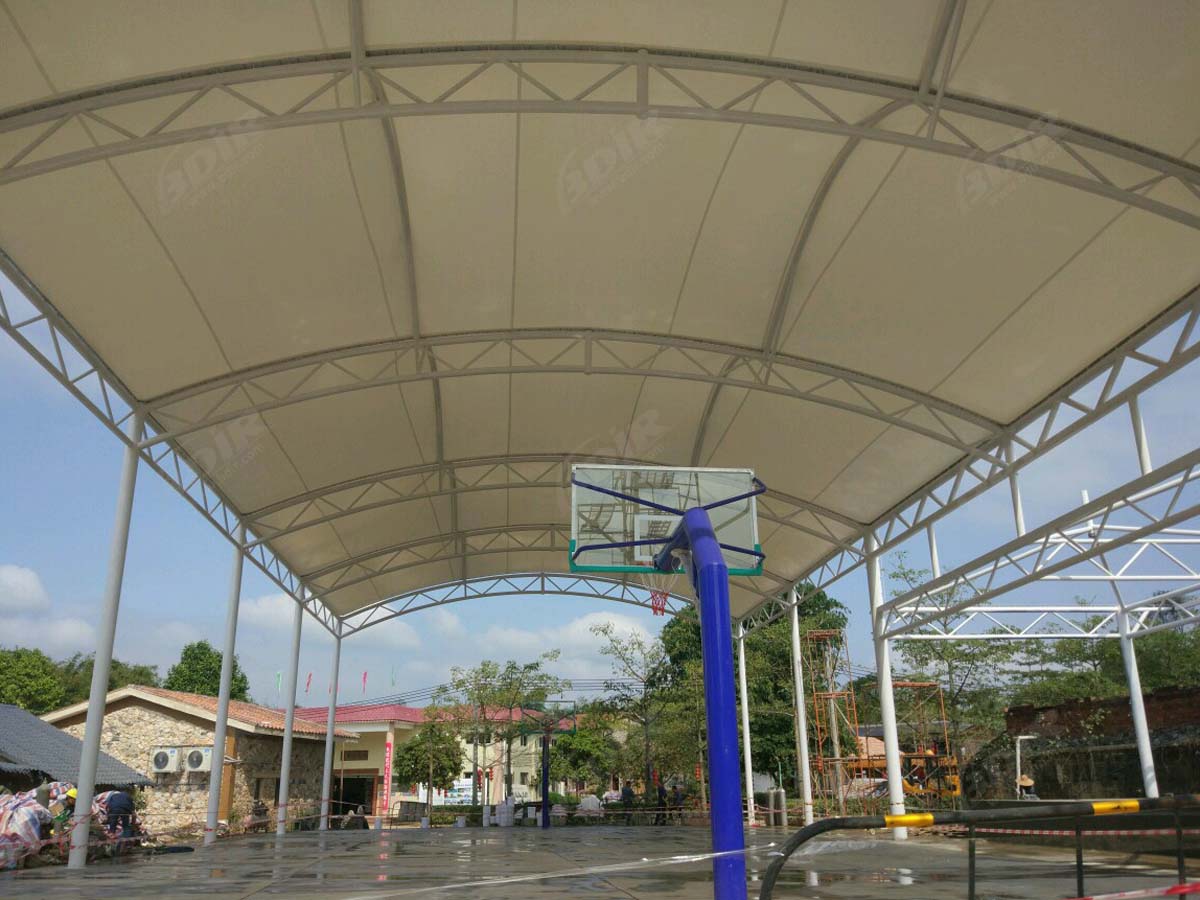

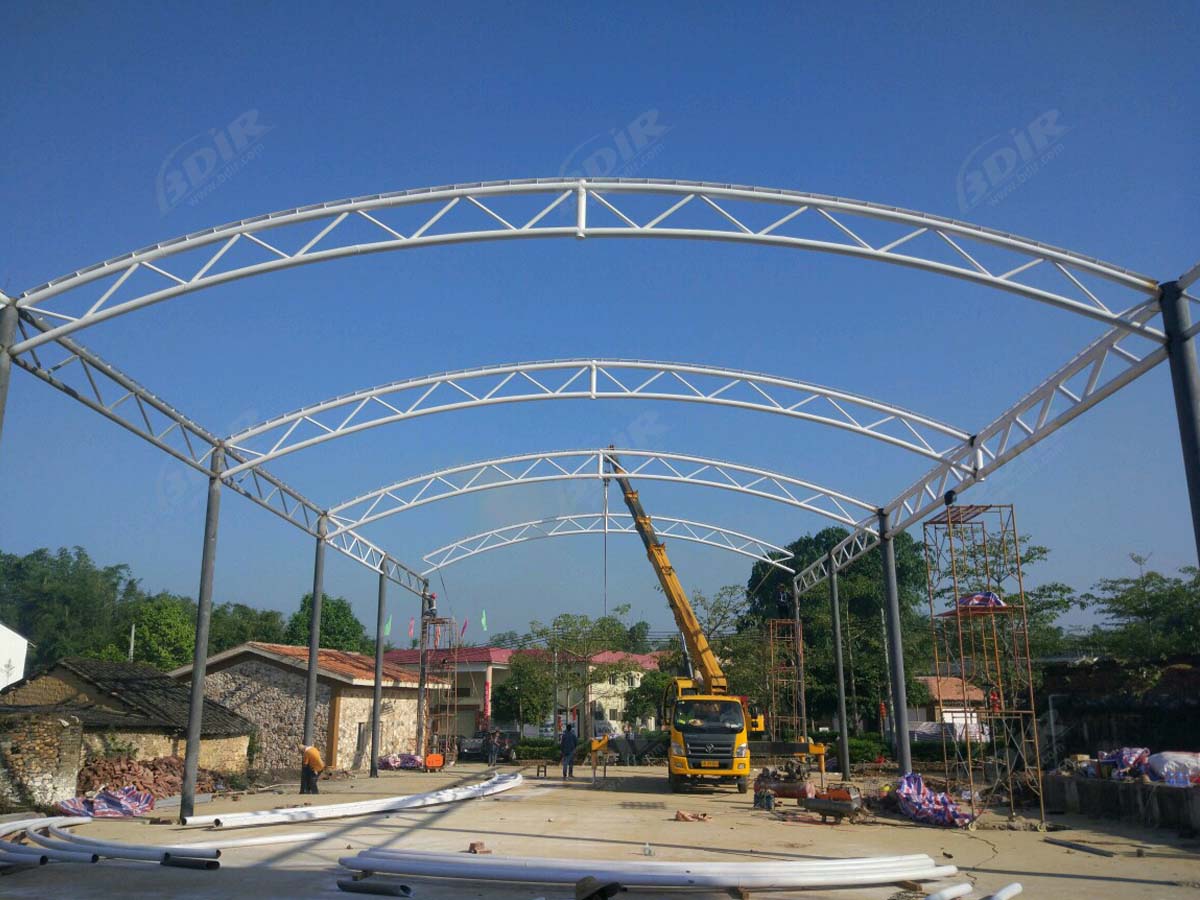

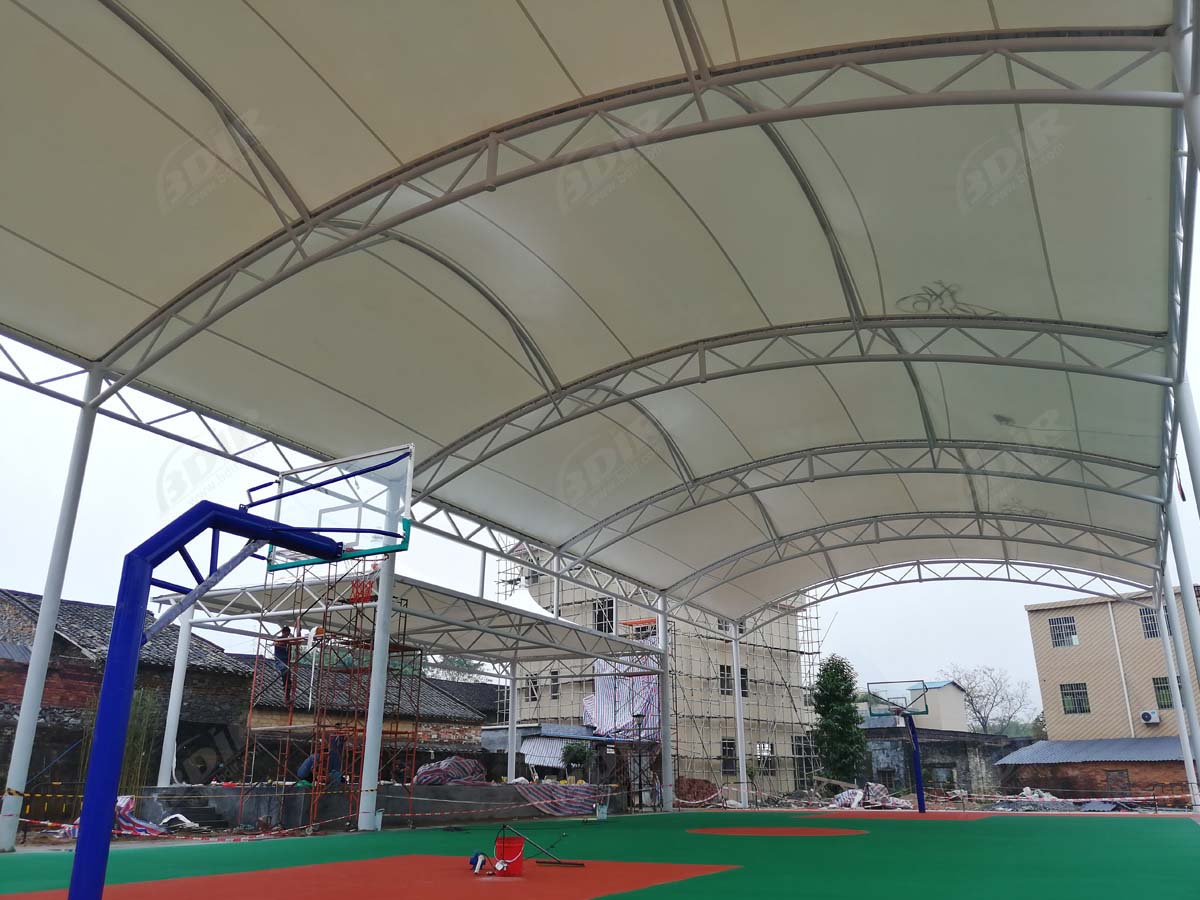

This is a full size basketball court covered roofing. It is about 30 meters long and 18 meters wide. We use steel structure to build the frame. The steels are made of Q235/Q345, hot-dip galvanized and seamless high-strength & high-quality steels; and with painting, CNC wire cutting, machine pull / roll bending, anti-rust treatment and other processes.

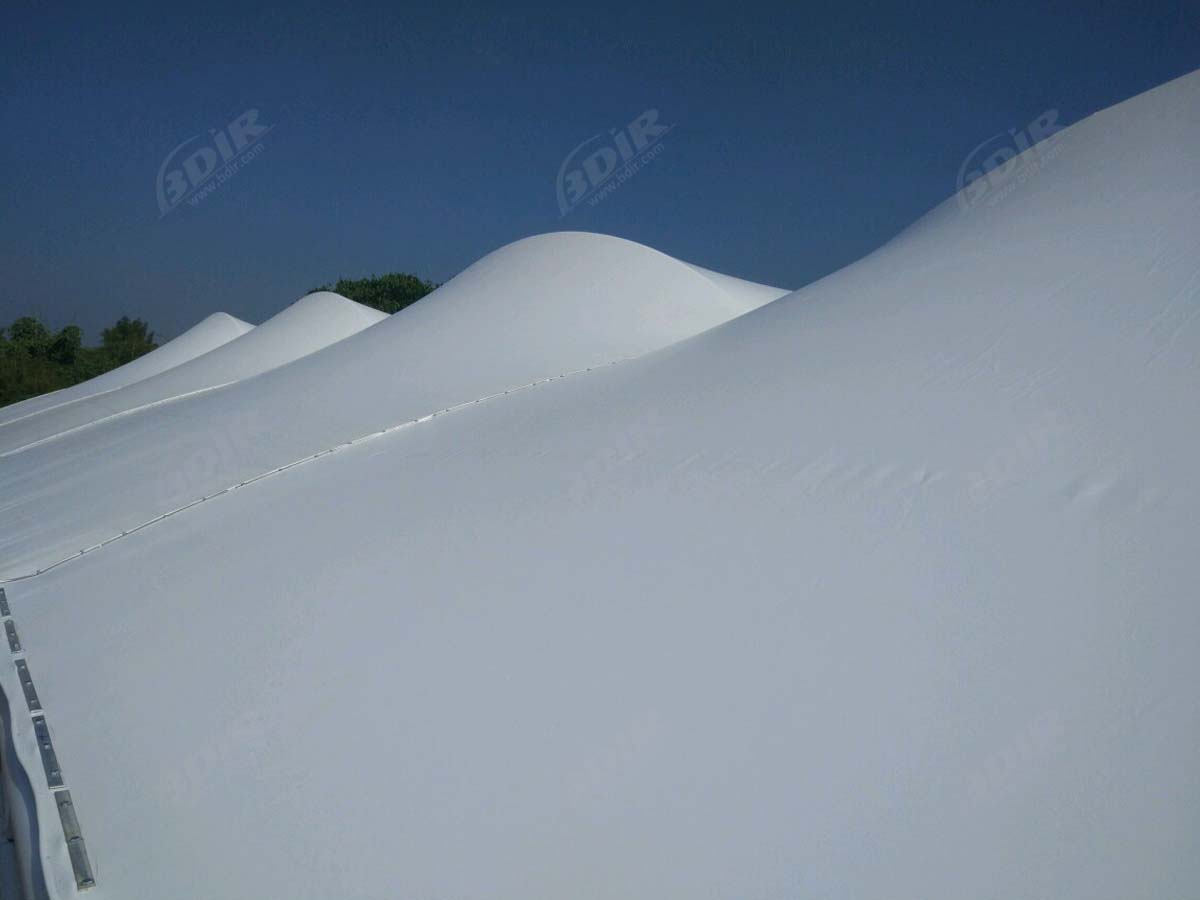

The PVDF membrane is covered as a shelter material, membrane can be chosen from PVDF, PTFE glass fiber, ETFE transparent permanent architectural membrane. Automatic cutting, high-frequency welding, super-stretching effect, curve forming can be ever-changing; membrane material's maintainance for 15-20 years.

In the accessories section, we use high-quality Jianlang brand aluminum bead, anchor head, wire rope, etc. We are subject to strict quality control from material procurement, processing, manufacturing to product transportation, on-site construction and installation. We pay attention to the operability and detail design, fine processing, and construction rigorous, to be a fine project in the end.

Tensile structure basketball court, which can provide shelter from the sun and rain, improve the efficiency of basketball courts, and it meets the needs of basketball fans in rainy days, which also reduce the cost of court maintenance, because of its large span and artistic elegant appearance makes the basketball court more attractive.

Tensile structure can be applied to various sports events, and we can design suitable sports courts canopies according to the size of the court and surroundings. Such as football court, basketball court, gate ball court, diving swimming pool, badminton court, rugby, baseball court, NBA arena, ice hockey rink, volleyball hall, golf course, equestrian hall, boxing hall, judo wrestling hall, taekwondo hall, softball hall , fencing hall, table tennis hall, shooting hall, etc.

SPECIFICATIONS

    • √. Large Span: Tensile Structures can create an expansive covered area, exceed to 200m.

    • √. Unique Design: Tensile fabric Structure gives architects, designers, and engineers the opportunity to experiment with form and create visually exciting and iconic structures.

    • √. Various Shape: Changeful supporting structure can make lots of different shapes of tensioned structure with flexible membrane.

    • √. Cost-effective: About 1/3 to 1/2 lower than conventional structures on costs.

    • √. Easy to Install: Faster and more cost-effective in comparison to traditional construction projects.

    • √. Weatherproof: Durable and designed to withstand even the most severe weather conditions. Provide protection from both the rain and sun.

    • √. Excellent Durability: Fabric tensile Structure is characterized by durability and longevity, can be built in different areas around the world, from the frigid arctic pole to the scorching desert heat.

    • √. ECO Friendly: Have high sun reflectivity and low solar absorption. As a result, less energy is used in the building, ultimately reducing the cost of electricity.

    • √. Low maintenance Needs: Tensile membrane Structures require minimal maintenance for clients, whether use of PVC, PVDF, PTFE or ETFE.

    • √. Outstanding Natural Daylighting: Membrane is translucent, In daylight, tension structures could offer rich soft diffused naturally daylight space, and at night, artificial lighting can make it bright and colorful.

DESIGN & MODEL

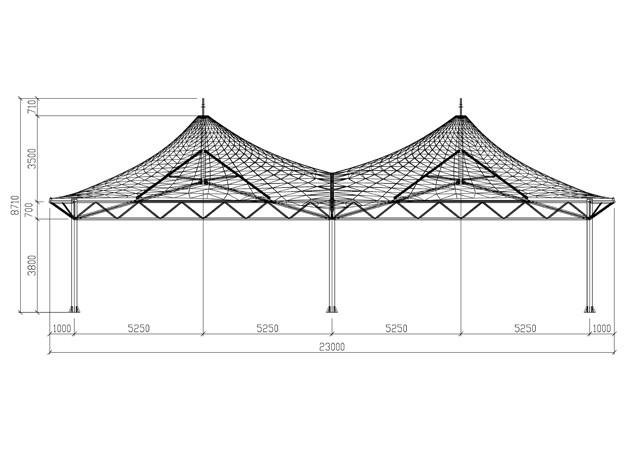

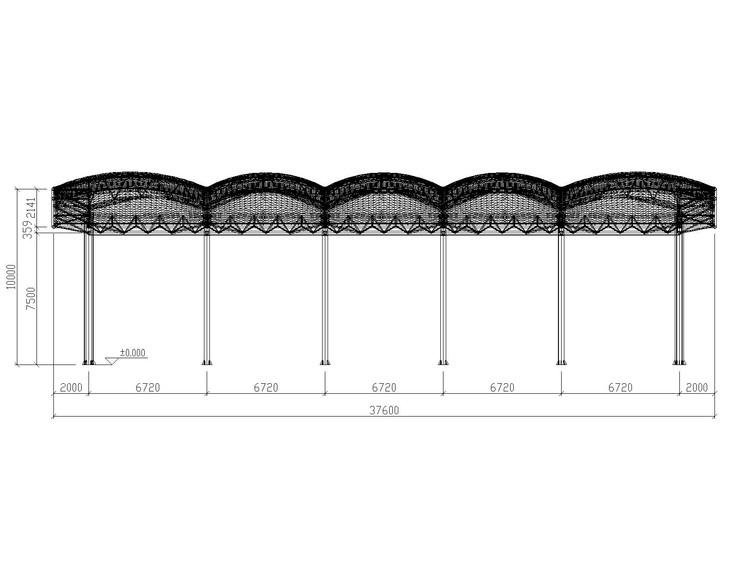

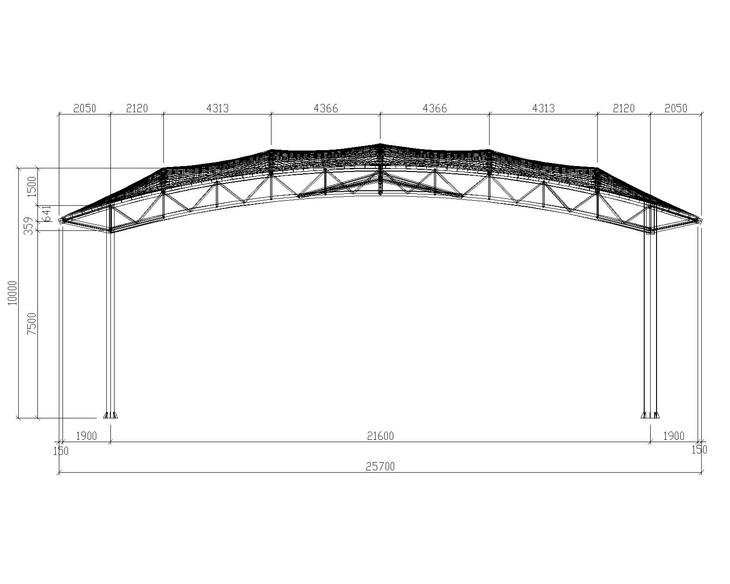

    Basketball Court, Stage & Coffee Shop Tensile Shade Structure Design

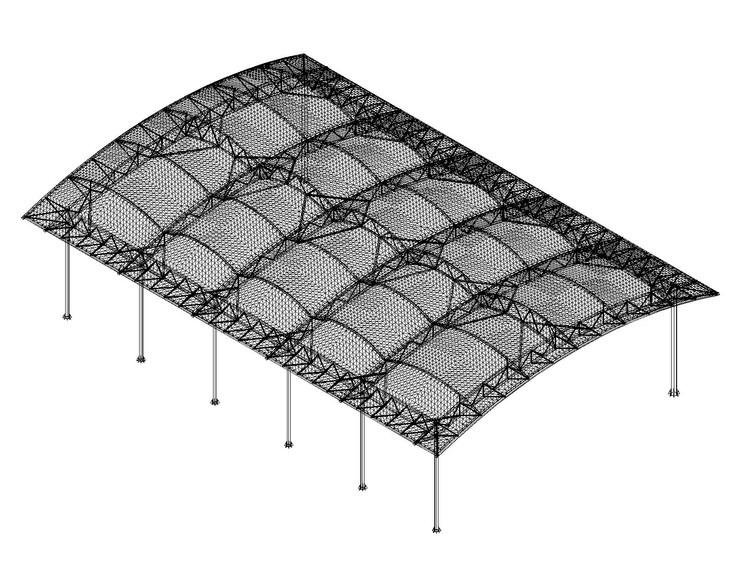

    Basketball Court, Stage & Coffee Shop Tensile Shade Structure Model

INSTALLATION


       Step 1: Design

       BDiR use the latest tensile structural design software to produce
       detailed tensile structural designs.


       Including:
       BIM model design (building information modeling),
       finding and load analysis,  integrated building design,
       joint force analysis, membrane cutting analysis,
       construction process simulation, numerical wind tunnel simulation.
    Step 2: Membrane Fabrication

    Membrane fabrication plays an important role in the tensile structure.

    There are many fabrics (PVC, PVDF, PTFE, ETFE) in the market, they come from all over the world, they have different characteristics and prices, different welding or joining techniques. We will make the best choices from structural design, project location and our customer budget.


      Step 3. Steel Fabrication

      Tensile structure are made of steel structural members that are welded
      and painted in our factory.


      We will conduct the following procedures with high standards:
      Paint thickness detection, ultrasonic testing,
      magnetic particle testing,
    high-strength bolt torque testing,
      cable pre-tensioning, rust removal ,

      pre-assembly inspection, painting, etc.

    Step 4: Cable Fabrication

    Cable and hardware fittings are procured from the most reliable and certified vendors of the industry in compliance with the international quality standards.

    Cable fabrication are proceed under guidance of our skilled and experienced experts.


      Step 5: Installation

      The installation of the tension structure is critical to the overall success
      of the project.


      We will provide on site installation service. Our project manager will work
      with the client to coordinate the structure installation on site.  Including
      steel structure installation, membrane lifting and measure tension. If you
      prefer self-installation, we'll send you detailed instructions so it can be
      easily installed.


    Step 6: The Future

    Our service will not end at the time of delivery and installation!

    Because we only use the highest quality membrane materials and steel frames, cables and parts. You can rest assured that your new tensile structure is built to last. Besides, Tensile structure does not require much maintenance and we offer a up to 35 year warranty.


REVIEWS


  • Zhen Liao, Planning authority Leader

    Tensile structure provide us a wide space, we can dance and show performance. Children can happily play under the roofing. Very pleasant cooperation. "
