Best UV Resistance Stadium Building PVDF Roof Structure - Guizhou, China

Description

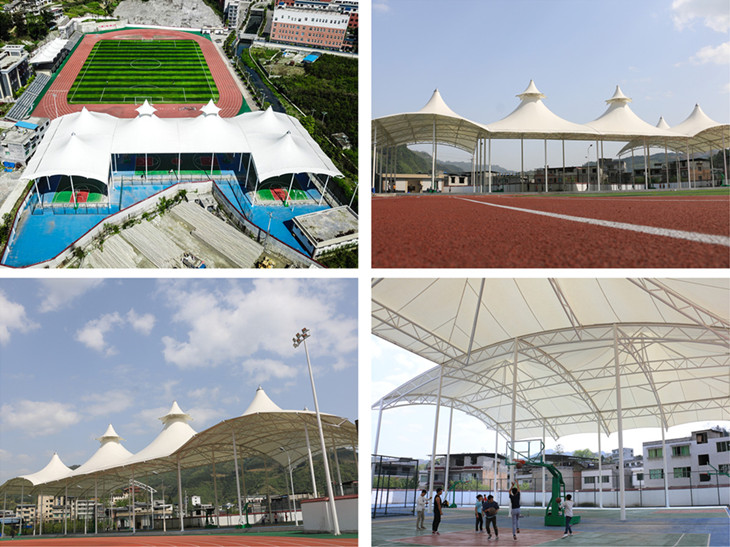

The PVDF roof structure project of the Tongzi No. 1 Middle School Stadium is a special government funded project. It includes three connected membrane structure basketball courts and a membrane structure stand. All are made of permanent membrane material PTFE. The advantage of this membrane structure project is long service life and self-cleaning. Good sex, it will become whiter and whiter in the sun, and will eventually remain white and transparent.

The PVDF tensile fabric membrane creates a new flexible architectural style, and the high-performance membrane material has the characteristics of light weight and good mechanical properties, making it possible for large-span column-free building spaces. Therefore, under certain conditions (especially sports buildings, Exhibition building) Membrane structure is an ideal choice that can greatly enrich the appearance of the building.

The total area of the project is 2850 square meters. All imported white Dukane PVDF membrane materials are used for this project, which has good light transmission and UV resistance. The project quality assurance is 15 years.

Specifications

- √. Large Span: Tensile Structures can create an expansive covered area, exceed to 200m.
- √. Unique Design: Tensile fabric Structure gives architects, designers, and engineers the opportunity to experiment with form and create visually exciting and iconic structures.
- √. Various Shape: Changeful supporting structure can make lots of different shapes of tensioned structure with flexible membrane.
- √. Cost-effective: About 1/3 to 1/2 lower than conventional structures on costs.
- √. Easy to Install: Faster and more cost-effective in comparison to traditional construction projects.
- √. Weatherproof: Durable and designed to withstand even the most severe weather conditions. Provide protection from both the rain and sun.
- √. Excellent Durability: Fabric tensile Structure is characterized by durability and longevity, can be built in different areas around the world, from the frigid arctic pole to the scorching desert heat.
- √. ECO Friendly: Have high sun reflectivity and low solar absorption. As a result, less energy is used in the building, ultimately reducing the cost of electricity.
- √. Low maintenance Needs: Tensile membrane Structures require minimal maintenance for clients, whether use of PVC, PVDF, PTFE or ETFE.
- √. Outstanding Natural Daylighting: Membrane is translucent, In daylight, tension structures could offer rich soft diffused naturally daylight space, and at night, artificial lighting can make it bright and colorful.

Design & Model

Installation

	Step 1: Design BDiR use the latest tensile structural design software to produce detailed tensile structural designs. Including: BIM model design (building information modeling), finding and load analysis, integrated building design, joint force analysis, membrane cutting analysis, construction process simulation, numerical wind tunnel simulation.
Step 2: Membrane Fabrication Membrane fabrication plays an important role in the tensile structure. There are many fabrics (PVC, PVDF, PTFE, ETFE) in the market, they come from all over the world, they have different characteristics and prices, different welding or joining techniques. We will make the best choices from structural design, project location and our customer budget.
	Step 3. Steel Fabrication Tensile structure are made of steel structural members that are welded and painted in our factory. We will conduct the following procedures with high standards: Paint thickness detection, ultrasonic testing, magnetic particle testing, high-strength bolt torque testing, cable pre-tensioning, rust removal , pre-assembly inspection, painting, etc.
Step 4: Cable Fabrication Cable and hardware fittings are procured from the most reliable and certified vendors of the industry in compliance with the international quality standards. Cable fabrication are proceed under guidance of our skilled and experienced experts.
	Step 5: Installation The installation of the tension structure is critical to the overall success of the project. We will provide on site installation service. Our project manager will work with the client to coordinate the structure installation on site. Including steel structure installation, membrane lifting and measure tension. If you prefer self-installation, we'll send you detailed instructions so it can be easily installed.
Step 6: The Future Our service will not end at the time of delivery and installation! Because we only use the highest quality membrane materials and steel frames, cables and parts. You can rest assured that your new tensile structure is built to last. Besides, Tensile structure does not require much maintenance and we offer a up to 35 year warranty.
