Campus Corridor Tensile Membrane Structure Rain Shelter - Zhuhai, China

Date Completed	October, 2024
Location	Zhuhai, China
Project Area360	360 square meters
Membrane Material	PVDF
Fabric Color	White
Shape	Arc
Structure	Q235 Steel, Hot Dip Galvanized
Warranty	20 Years
Delivery Time	About 30 Days after confirm deposit
Payment	T/T, LC
Brand	BDiR
Place of Origin	Guangzhou, China

INQUIRY NOW

Hot Search: modular buildings, parking canopy, car parking shed design architecture, car parking shades design, parking lot shade structures, Car Parking,

RELATED PROJECTS

News at BDiR

Efficient, Aesthetic, Sustainable, and Cost-Effective: The Future of Membrane Facades

Foshan Century Lotus Sports Center: A Masterpiece of Membrane Roof Design

Tensile Fabric Structure Installation: Considerations for Installing Tensile Membrane

What is a Tensile Fabric Structure? Why Load Analysis is Essential

Tensile Membrane Structures: Innovation, Aesthetics, and Performance

Campus Corridor Tensile Membrane Structure Rain Shelter - Zhuhai, China

Description

In October 2024, BDiR successfully completed the installation of a 360-square-meter tensile membrane rain shelter for the Ziqi Primary School corridor in Zhuhai, China.

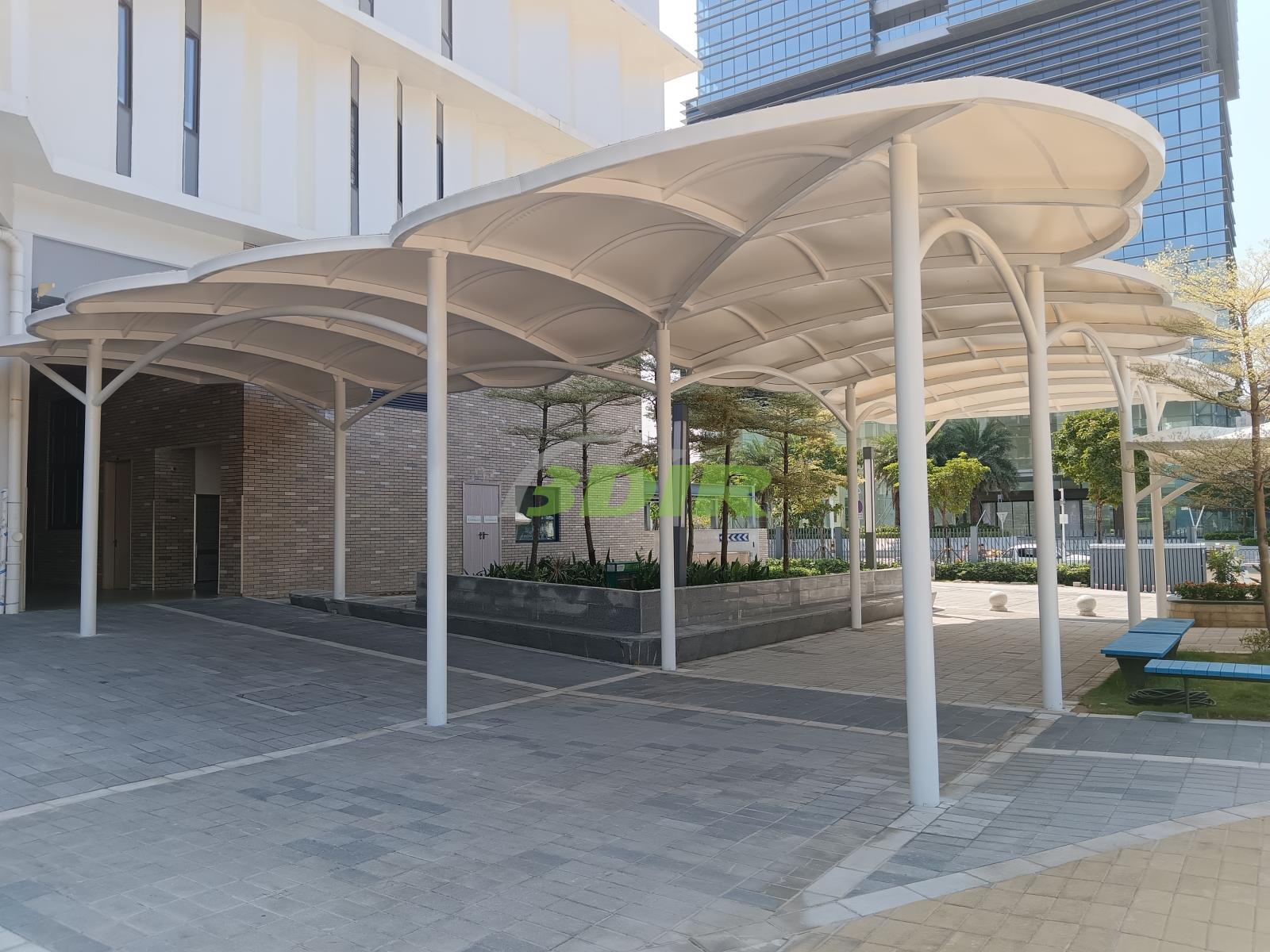

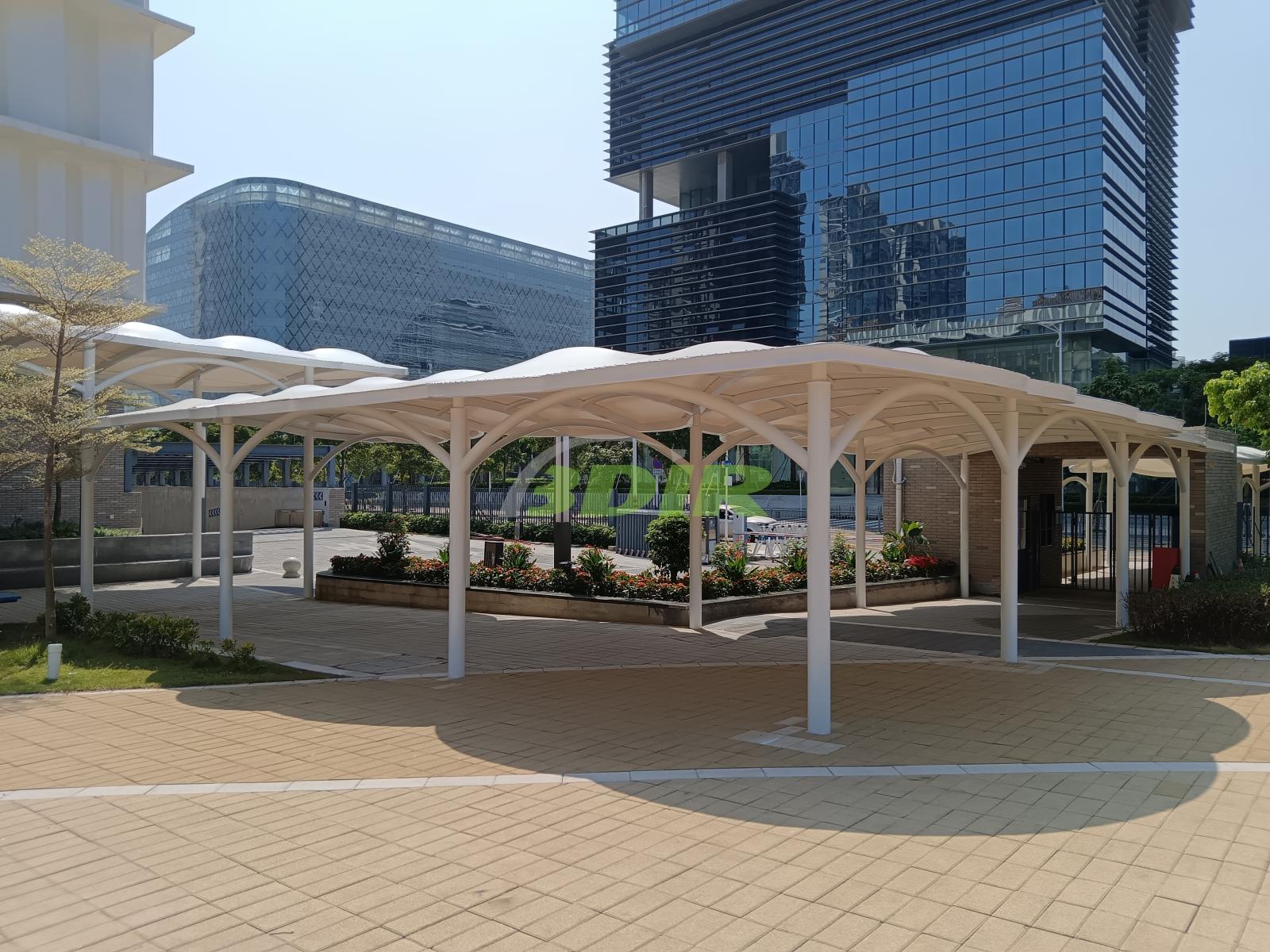

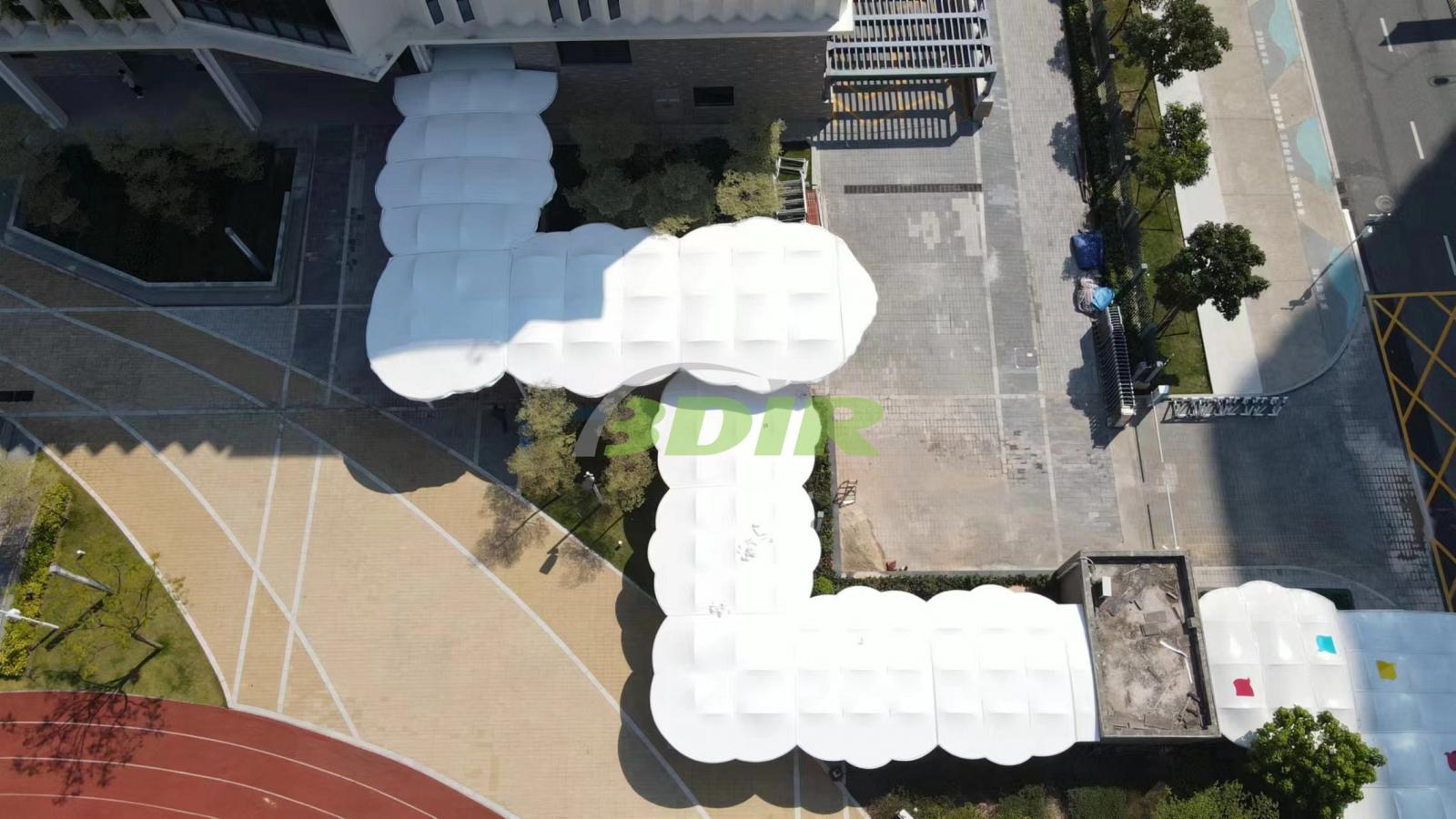

The canopy features an arched, cloud-inspired design, resembling a series of connected clouds forming a caterpillar-like pattern when viewed from above. The structure balances aesthetic appeal with functionality, ensuring the safety and comfort of students moving from the school gate to the teaching buildings, even during extreme weather conditions.

Tensile membrane rain shelters are recognized for their cost-effectiveness, ease of installation, excellent drainage, and superior sun protection, making them an ideal solution for modern architectural needs.

Material selection is crucial for these structures and must be tailored to regional conditions. For coastal areas, fabrics with high tensile strength and wind resistance are essential. In Southeast Asian countries, UV-resistant membranes are preferred, while in colder northern regions, materials must be chosen with thermal insulation and snow load resistance in mind to ensure durability and performance.

Specifications

- √. Large Span: Tensile Structures can create an expansive covered area, exceed to 200m.
- √. Unique Design: Tensile fabric Structure gives architects, designers, and engineers the opportunity to experiment with form and create visually exciting and iconic structures.
- √. Various Shape: Changeful supporting structure can make lots of different shapes of tensioned structure with flexible membrane.
- √. Cost-effective: About 1/3 to 1/2 lower than conventional structures on costs.
- √. Easy to Install: Faster and more cost-effective in comparison to traditional construction projects.
- √. Weatherproof: Durable and designed to withstand even the most severe weather conditions. Provide protection from both the rain and sun.
- √. Excellent Durability: Fabric tensile Structure is characterized by durability and longevity, can be built in different areas around the world, from the frigid arctic pole to the scorching desert heat.
- √. ECO Friendly: Have high sun reflectivity and low solar absorption. As a result, less energy is used in the building, ultimately reducing the cost of electricity.
- √. Low maintenance Needs: Tensile membrane Structures require minimal maintenance for clients, whether use of PVC, PVDF, PTFE or ETFE.
- √. Outstanding Natural Daylighting: Membrane is translucent, In daylight, tension structures could offer rich soft diffused naturally daylight space, and at night, artificial lighting can make it bright and colorful.

Design & Model

Installation

	Step 1: Design BDiR use the latest tensile structural design software to produce detailed tensile structural designs. Including: BIM model design (building information modeling), finding and load analysis, integrated building design, joint force analysis, membrane cutting analysis, construction process simulation, numerical wind tunnel simulation.
Step 2: Membrane Fabrication Membrane fabrication plays an important role in the tensile structure. There are many fabrics (PVC, PVDF, PTFE, ETFE) in the market, they come from all over the world, they have different characteristics and prices, different welding or joining techniques. We will make the best choices from structural design, project location and our customer budget.
	Step 3. Steel Fabrication Tensile structure are made of steel structural members that are welded and painted in our factory. We will conduct the following procedures with high standards: Paint thickness detection, ultrasonic testing, magnetic particle testing, high-strength bolt torque testing, cable pre-tensioning, rust removal , pre-assembly inspection, painting, etc.
Step 4: Cable Fabrication Cable and hardware fittings are procured from the most reliable and certified vendors of the industry in compliance with the international quality standards. Cable fabrication are proceed under guidance of our skilled and experienced experts.
	Step 5: Installation The installation of the tension structure is critical to the overall success of the project. We will provide on site installation service. Our project manager will work with the client to coordinate the structure installation on site. Including steel structure installation, membrane lifting and measure tension. If you prefer self-installation, we'll send you detailed instructions so it can be easily installed.
Step 6: The Future Our service will not end at the time of delivery and installation! Because we only use the highest quality membrane materials and steel frames, cables and parts. You can rest assured that your new tensile structure is built to last. Besides, Tensile structure does not require much maintenance and we offer a up to 35 year warranty.
