Film-Studio City Tensile Shade Structure - Zhongshan, China

Date Completed	November, 2017
Location	Zhongshan, China
Project Area	350 square meters
Membrane Material	PVDF
Fabric Color	White
Shape	Cone
Structure	Q235 Steel, Hot Dip Galvanized
Warranty	20 Years
Delivery Time	About 30 Days after confirm deposit
Payment	T/T, LC
Brand	BDiR
Place of Origin	Shenzhen, China

INQUIRY NOW

Hot Search: canvas structures, playground canopy, outdoor shade structures, fabritec structures, fabric building cost, global tensile structure,

RELATED PROJECTS

Xihe Bay Water Parks Tensile Roof & Grandstand Shade Structure - Xingning, China

Entrance & Stage of Amusement Park Tensile Fabric Structure - Tunis, Tunisia

PVDF Fabric Tensile Structure for Guangzhou Art School Grandstand & Stage Roof

Seaworld Aquatica Water Park Tensile Structure - Xiamen, China

Animation Water Park Entrance & Landscape Tensile Structure - Chenzhou, China

PVDF Fabric Tensile Structure for Outdoor Restaurant - Abuja, Nigeria

Tensile Roof Structure for Huangqi Mountain Sports Parks - Dongguan, China

Tensile Structure for Gymnasium & Football Stadium - Nanchang Sports Center

Hotel Tents | Luxury Tent Hotel | Resort Tents | Luxury Eco Resorts - Anji, China

PVDF Fabric Roofing Tent House for Luxury Camping Resort Accommodation - Chongqing, China

News at BDiR

Foshan Century Lotus Sports Center: A Masterpiece of Membrane Roof Design

Tensile Fabric Structure Installation: Considerations for Installing Tensile Membrane

What is a Tensile Fabric Structure? Why Load Analysis is Essential

Tensile Membrane Structures: Innovation, Aesthetics, and Performance

Membrane Structure Tennis Court at China Mobile Guangzhou HQ

Film-Studio City Tensile Shade Structure - Zhongshan, China

Description

Zhongshan Film-Studio City, located in Zhongshan, China. It is a large-scale comprehensive tourist area integrating tourism, patriotism education, movie and television photography. in 2001, it was built by the Zhongshan Municipal People's Government with an investment of 150 million Yuan. in 2006, Zhongshan Film-Studio City was elected as one of China's roof ten Filmstudio bases.

In November 2017, BDiR successfully won the tender to install a stage tensile shade structure in Zhongshan Film-Studio City. After the initial court trip, BDiR sent a proposal which contains the design and concept. in the next month, we worked with the contractor to complete the design, materials and pricing and finished it within 15 days.

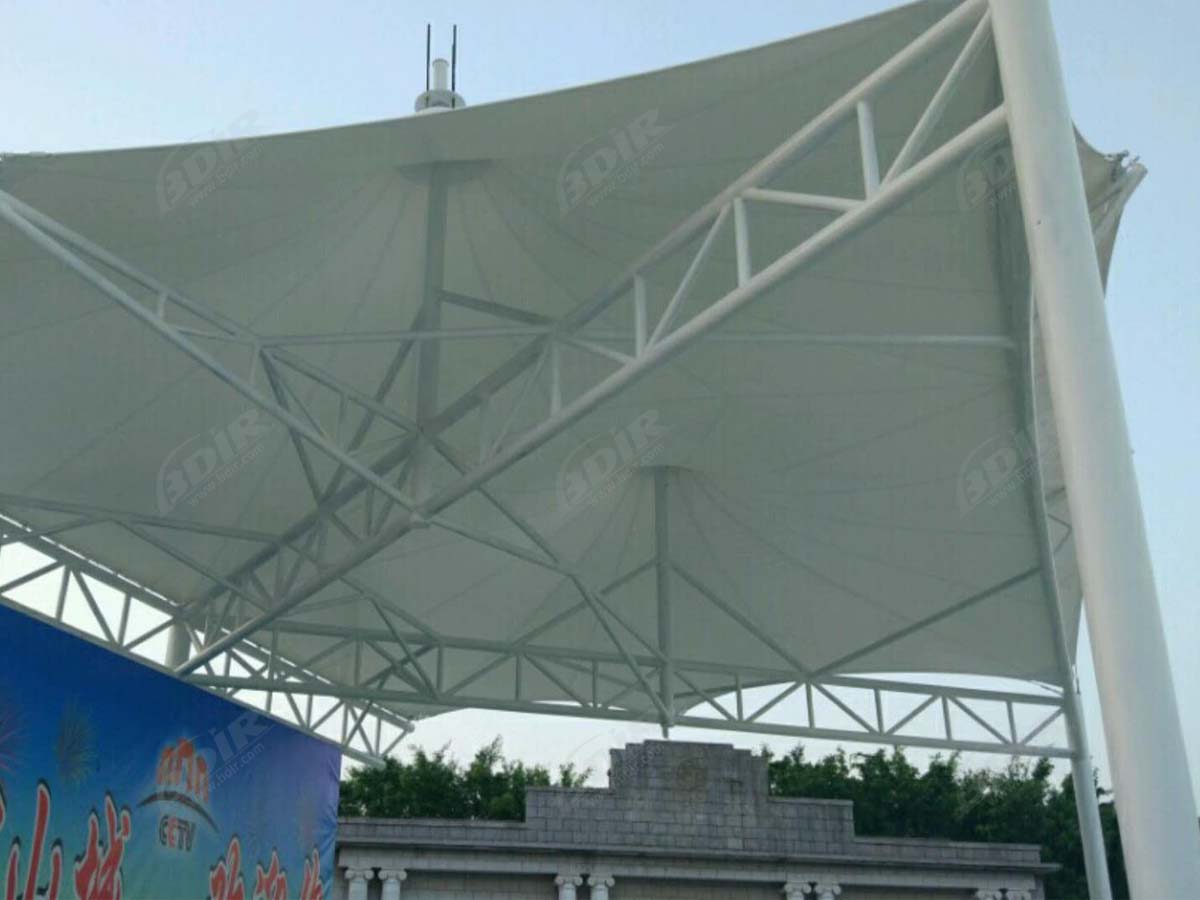

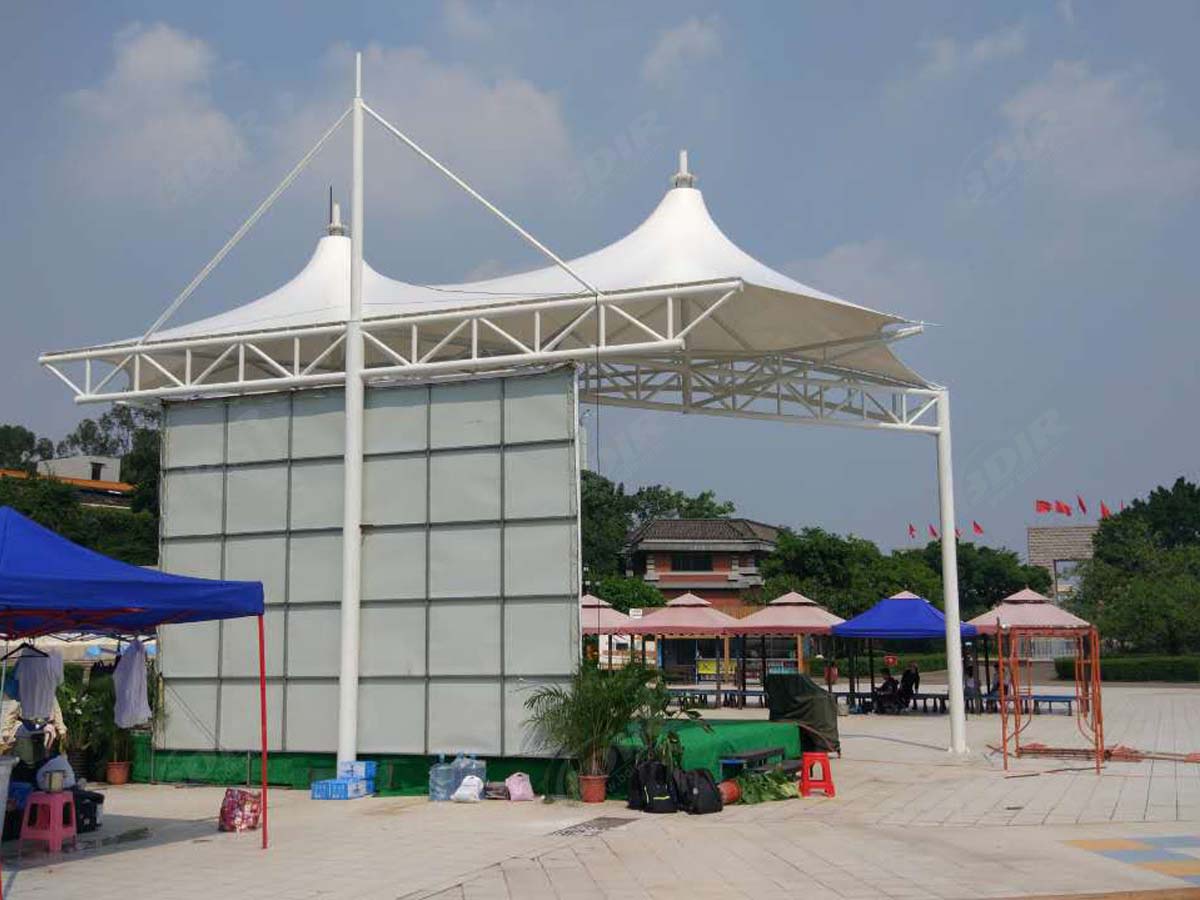

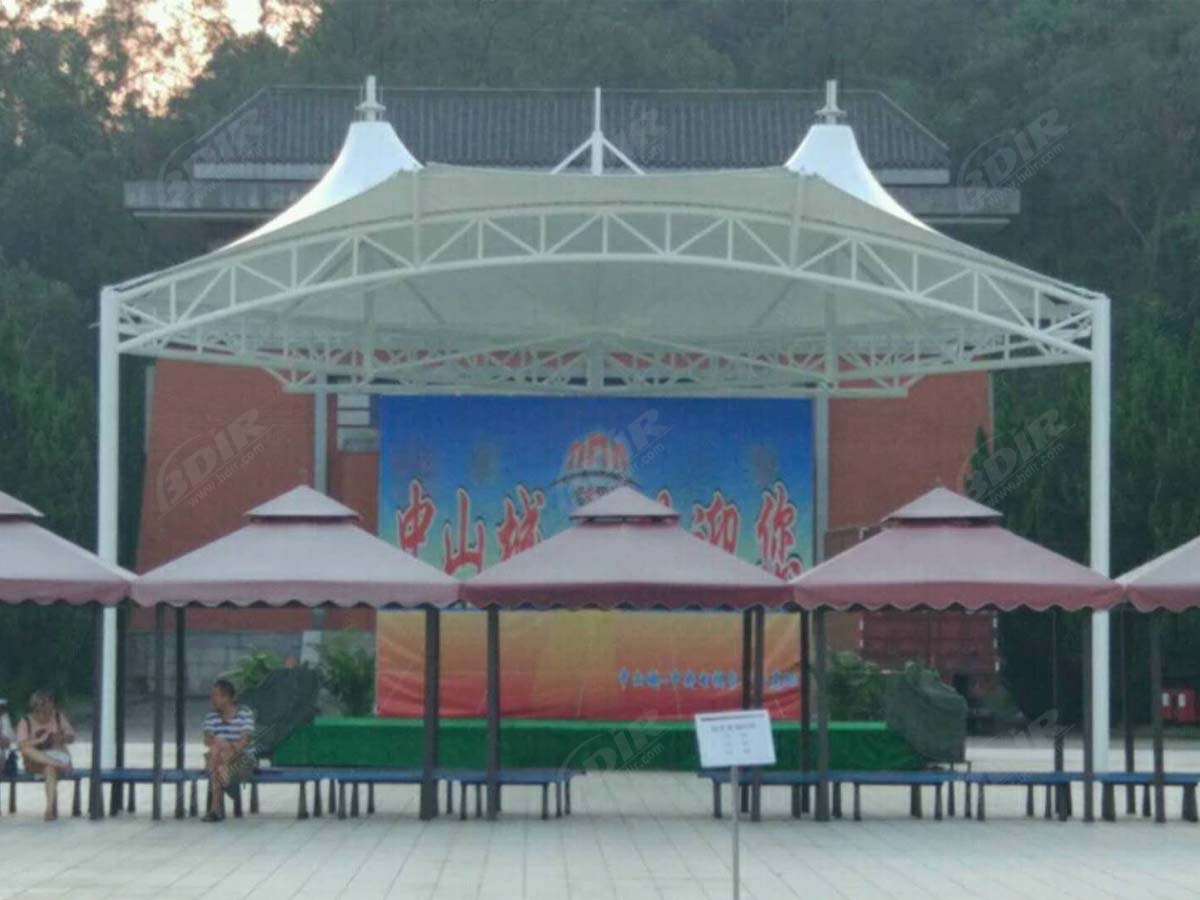

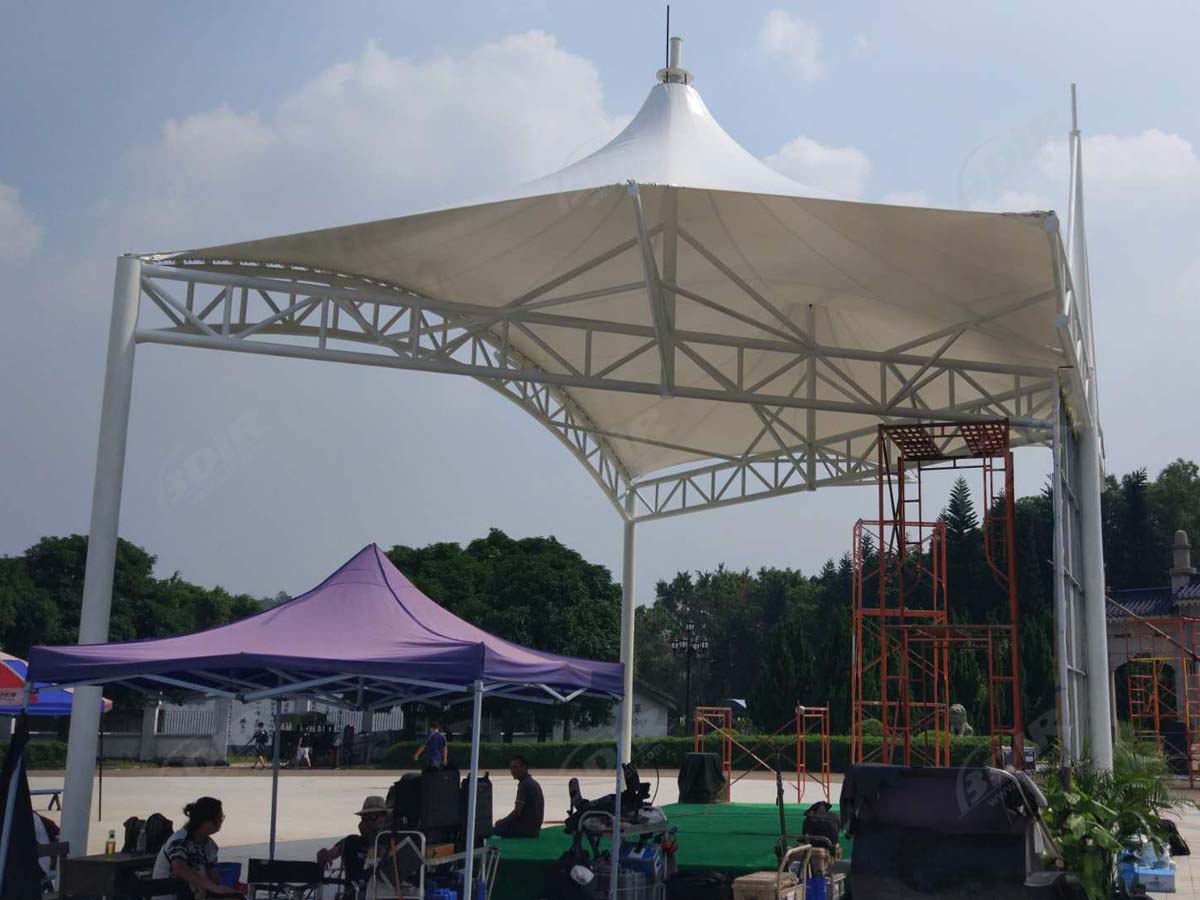

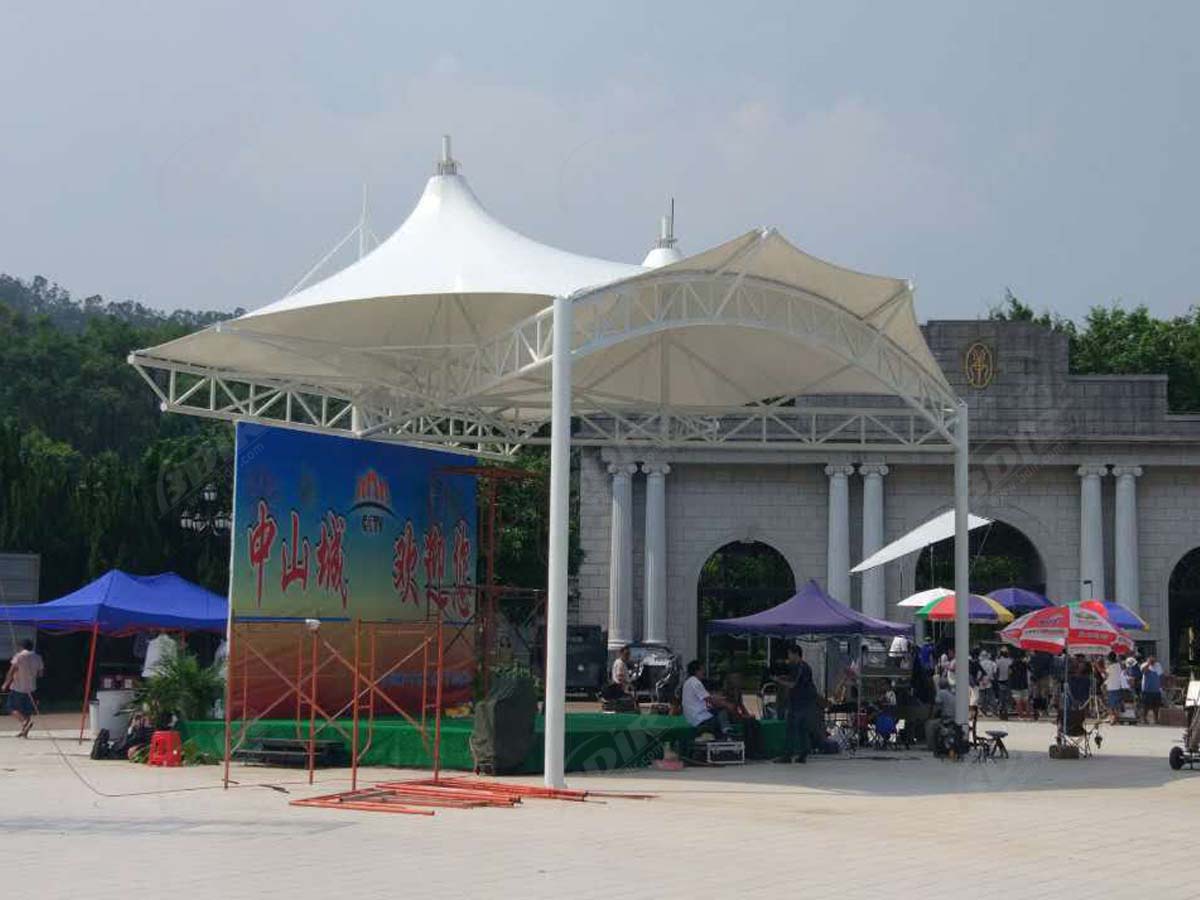

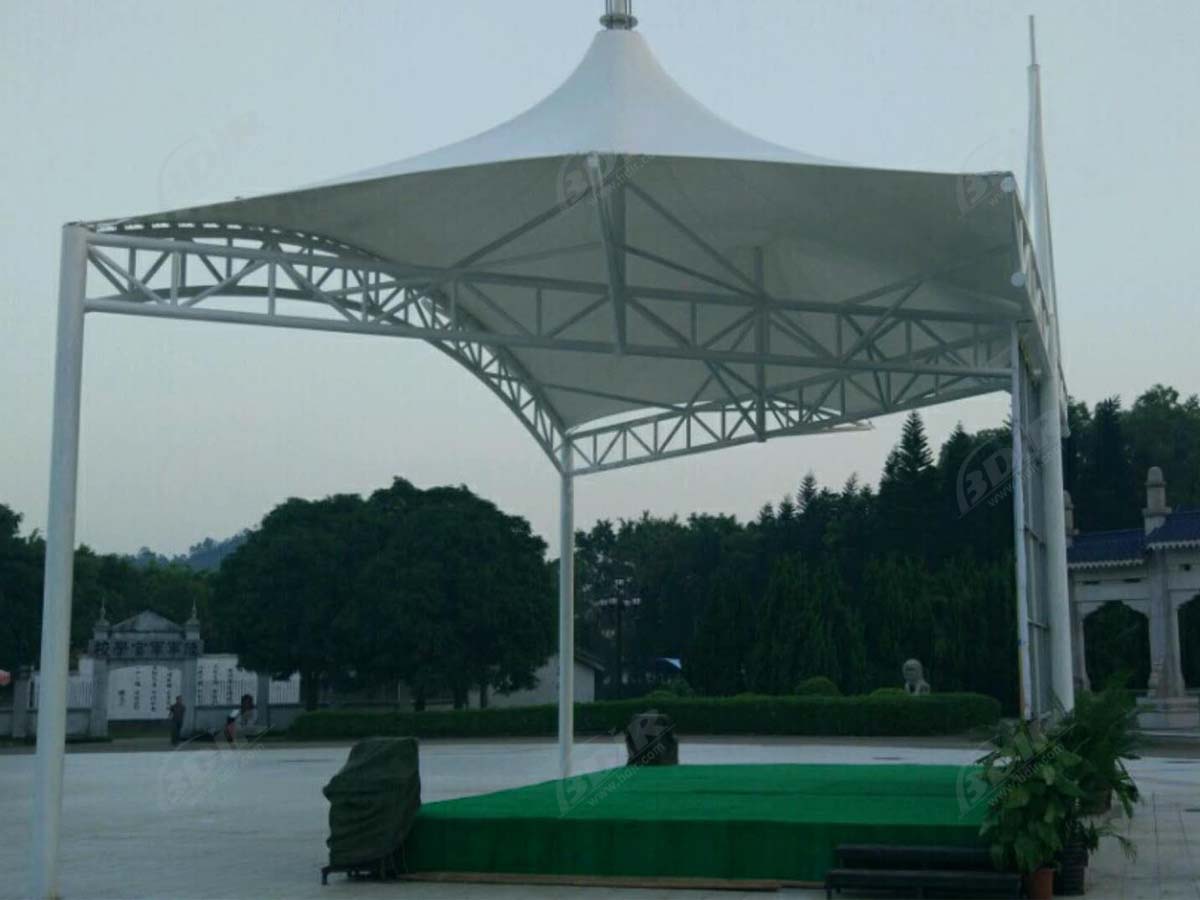

The project has a stage area of more than 200 square meters and is made of imported PVDF membrane. After the project was completed, it added an iconic landscape to the Film-Studio City.

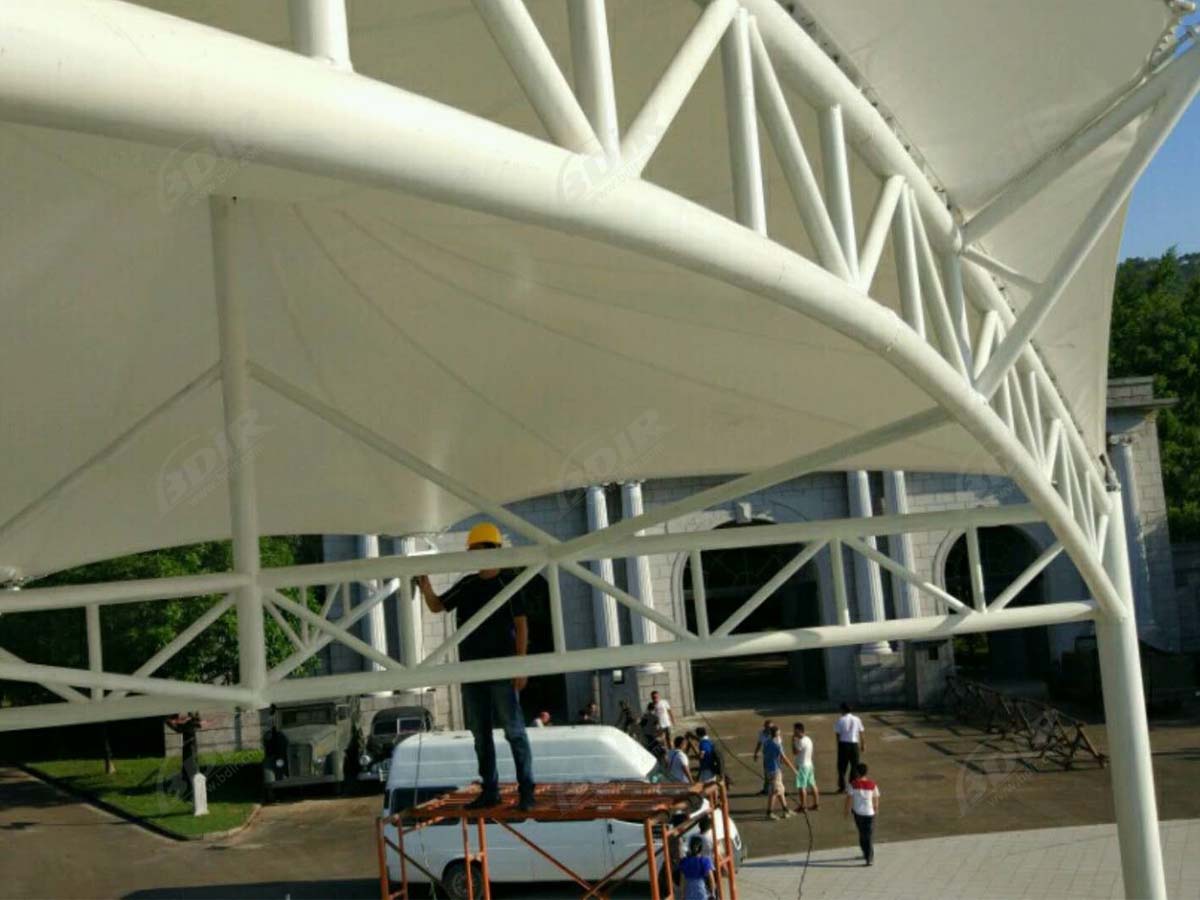

During the construction process, we conduct safety education and training for each worker. After the concerted efforts of all guys, we completed the project on time and received huge praise of the owners.

Specifications

- √. Large Span: Tensile Structures can create an expansive covered area, exceed to 200m.
- √. Unique Design: Tensile fabric Structure gives architects, designers, and engineers the opportunity to experiment with form and create visually exciting and iconic structures.
- √. Various Shape: Changeful supporting structure can make lots of different shapes of tensioned structure with flexible membrane.
- √. Cost-effective: About 1/3 to 1/2 lower than conventional structures on costs.
- √. Easy to Install: Faster and more cost-effective in comparison to traditional construction projects.
- √. Weatherproof: Durable and designed to withstand even the most severe weather conditions. Provide protection from both the rain and sun.
- √. Excellent Durability: Fabric tensile Structure is characterized by durability and longevity, can be built in different areas around the world, from the frigid arctic pole to the scorching desert heat.
- √. ECO Friendly: Have high sun reflectivity and low solar absorption. As a result, less energy is used in the building, ultimately reducing the cost of electricity.
- √. Low maintenance Needs: Tensile membrane Structures require minimal maintenance for clients, whether use of PVC, PVDF, PTFE or ETFE.
- √. Outstanding Natural Daylighting: Membrane is translucent, In daylight, tension structures could offer rich soft diffused naturally daylight space, and at night, artificial lighting can make it bright and colorful.

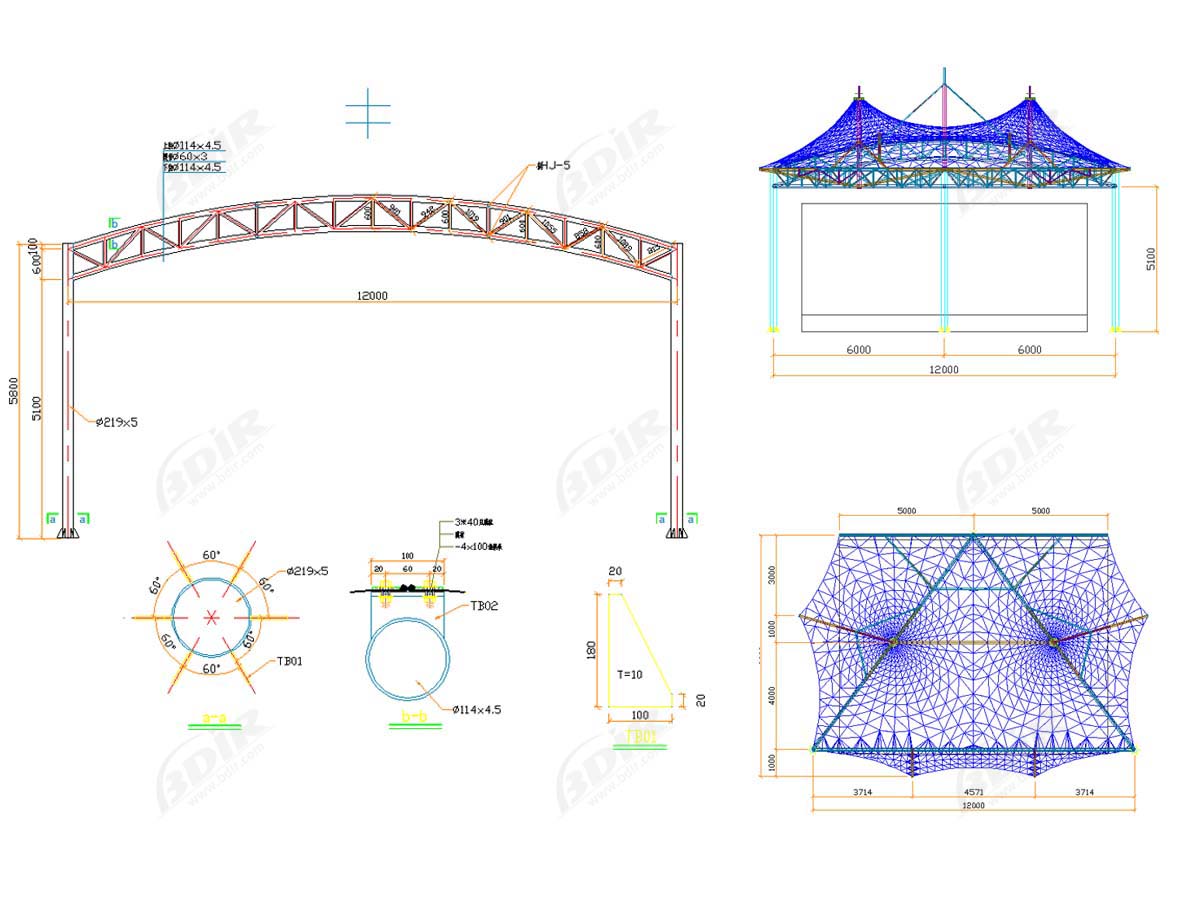

Design & Model

Installation

	Step 1: Design BDiR use the latest tensile structural design software to produce detailed tensile structural designs. Including: BIM model design (building information modeling), finding and load analysis, integrated building design, joint force analysis, membrane cutting analysis, construction process simulation, numerical wind tunnel simulation.
Step 2: Membrane Fabrication Membrane fabrication plays an important role in the tensile structure. There are many fabrics (PVC, PVDF, PTFE, ETFE) in the market, they come from all over the world, they have different characteristics and prices, different welding or joining techniques. We will make the best choices from structural design, project location and our customer budget.
	Step 3. Steel Fabrication Tensile structure are made of steel structural members that are welded and painted in our factory. We will conduct the following procedures with high standards: Paint thickness detection, ultrasonic testing, magnetic particle testing, high-strength bolt torque testing, cable pre-tensioning, rust removal , pre-assembly inspection, painting, etc.
Step 4: Cable Fabrication Cable and hardware fittings are procured from the most reliable and certified vendors of the industry in compliance with the international quality standards. Cable fabrication are proceed under guidance of our skilled and experienced experts.
	Step 5: Installation The installation of the tension structure is critical to the overall success of the project. We will provide on site installation service. Our project manager will work with the client to coordinate the structure installation on site. Including steel structure installation, membrane lifting and measure tension. If you prefer self-installation, we'll send you detailed instructions so it can be easily installed.
Step 6: The Future Our service will not end at the time of delivery and installation! Because we only use the highest quality membrane materials and steel frames, cables and parts. You can rest assured that your new tensile structure is built to last. Besides, Tensile structure does not require much maintenance and we offer a up to 35 year warranty.
