Membrane Structure Parking Shed in An Industrial Park - Guangzhou, China
Date Completed December, 2021 Location Guangzhou, China Project Area 240 square meters Membrane Material PVDF Fabric Color White Shape Flat Structure Q235 Steel, Hot Dip Galvanized Warranty 20 Years Delivery Time About 30 Days after confirm deposit Payment T/T, LC Brand BDiR Place of Origin Shenzhen, China - INQUIRY NOW
RELATED PROJECTS
The Most Practical Tensile Structure Of Jinshazhou Hospital-Guangzhou, China
Custom Awning & Tension Structure For Shopping Mall-Jiangmen, Guangdong
Holiday Manor Custom Awning & Stage Tensile Structure-Tianjin, China
Tensile Structure Of Basketball Court And Corridor-Nanxiong, Shaoguan, Guangdong
Tensile Structure Of The Beautiful Huangteng Gorge Scenic Spot In Qingyuan, China
Custom Tensile Landscape Shade Sail Architecture-Palm Island, East Timor
Municipal Service Building Tensile Landscape Structure-Azerbaijan
Construction Of Custom Awning Covers For Tennis Courts-Manila, Philippines
35M Commercial Event Tent Structure | Outdoor Dome Concerts - Zhuhai, China
6M Boutique Garden Igloo Dome & Eco House Canopy - Chongqing, China
News at BDiR
Foshan Century Lotus Sports Center: A Masterpiece of Membrane Roof Design
Tensile Fabric Structure Installation: Considerations for Installing Tensile Membrane
What is a Tensile Fabric Structure? Why Load Analysis is Essential
Tensile Membrane Structures: Innovation, Aesthetics, and Performance
Membrane Structure Tennis Court at China Mobile Guangzhou HQ
Description

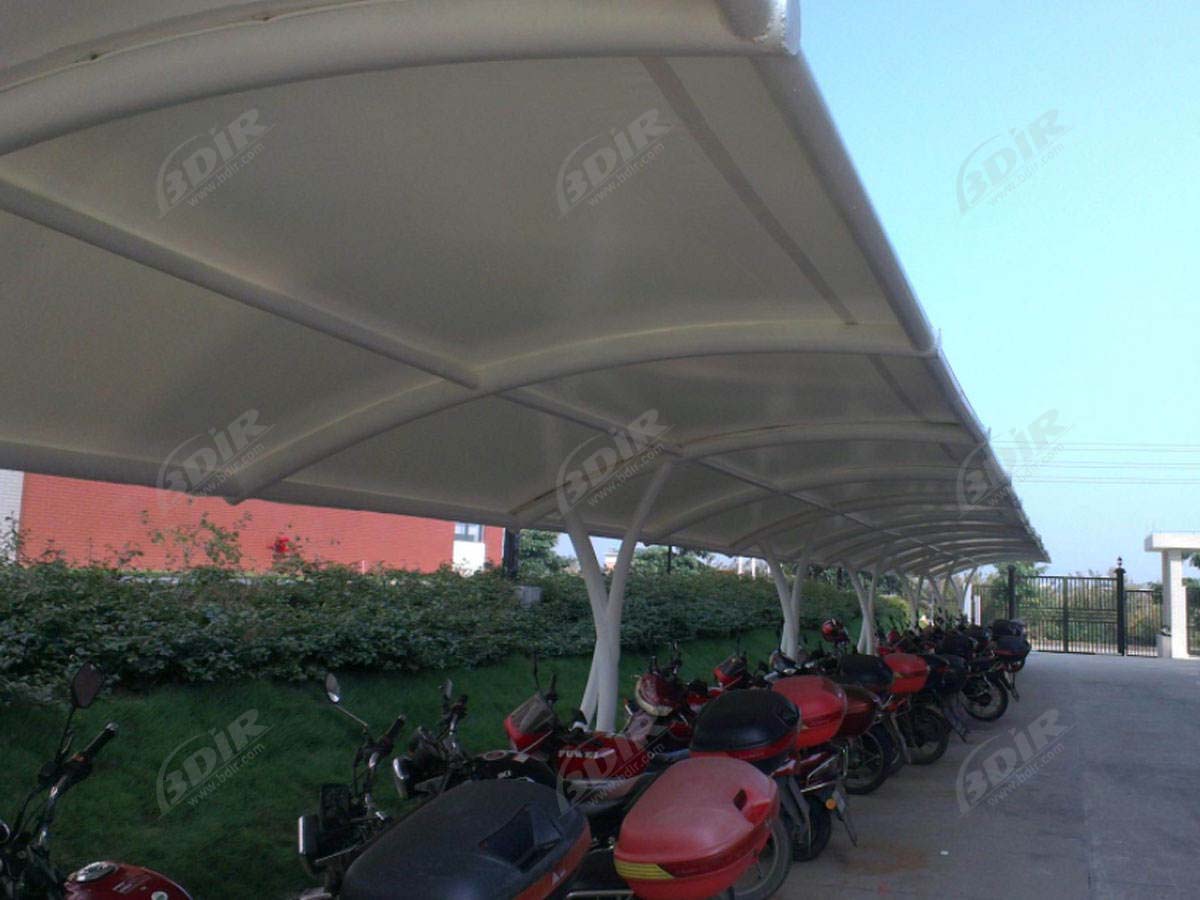

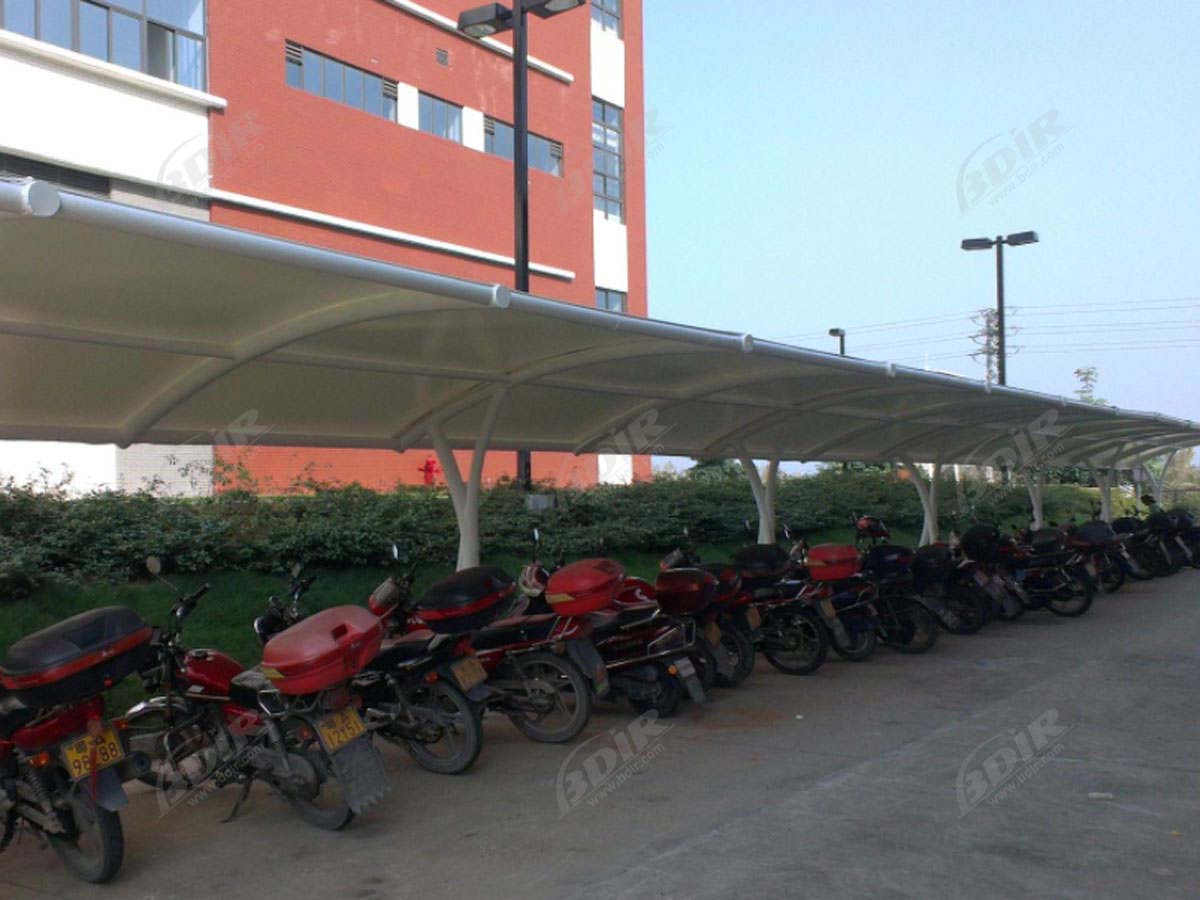

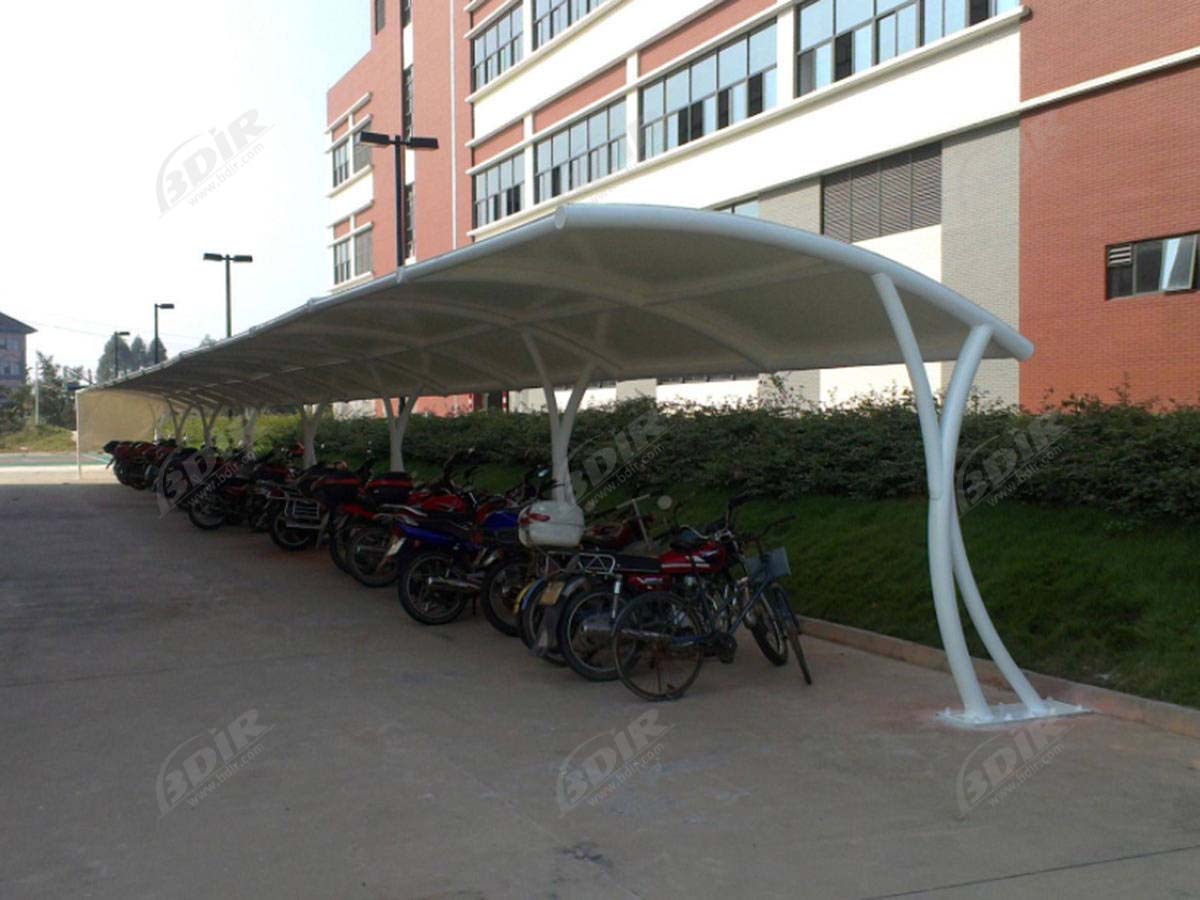

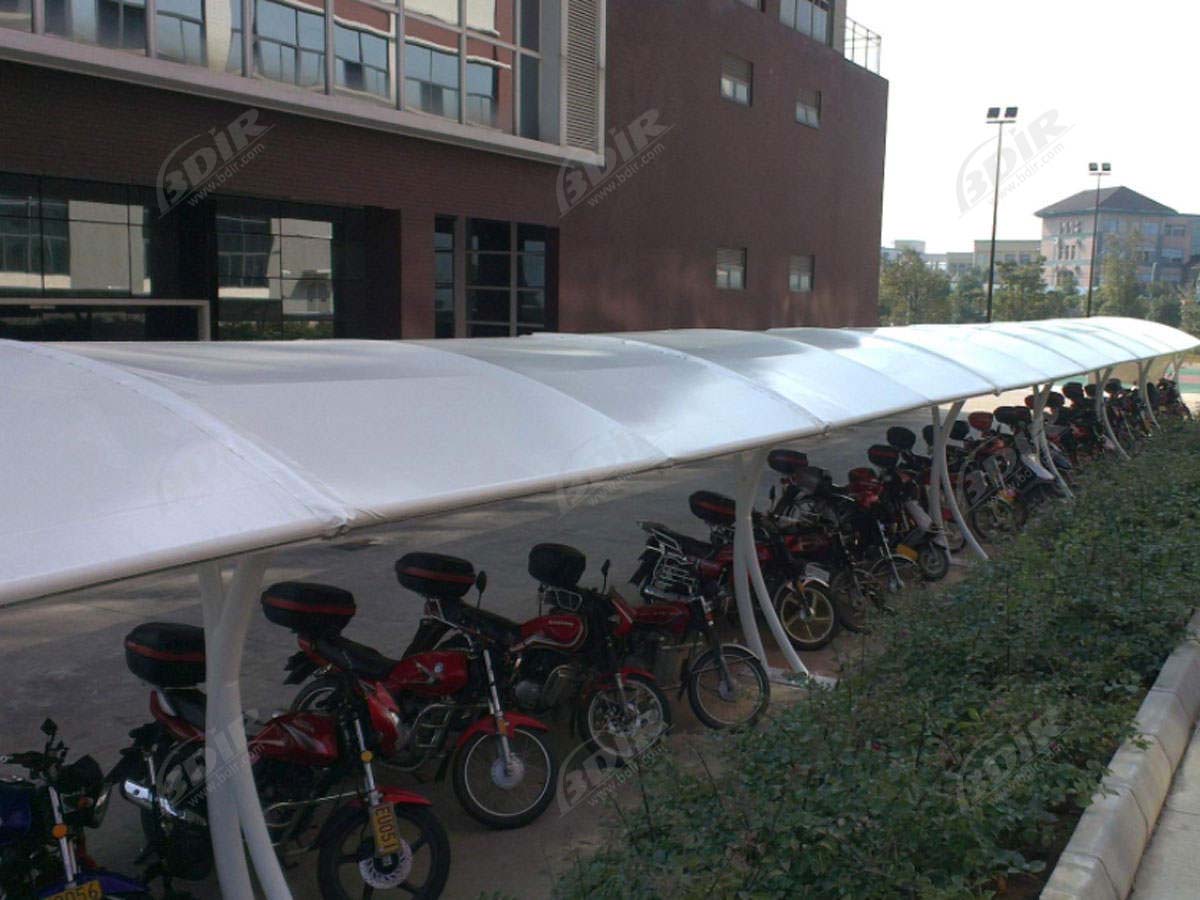

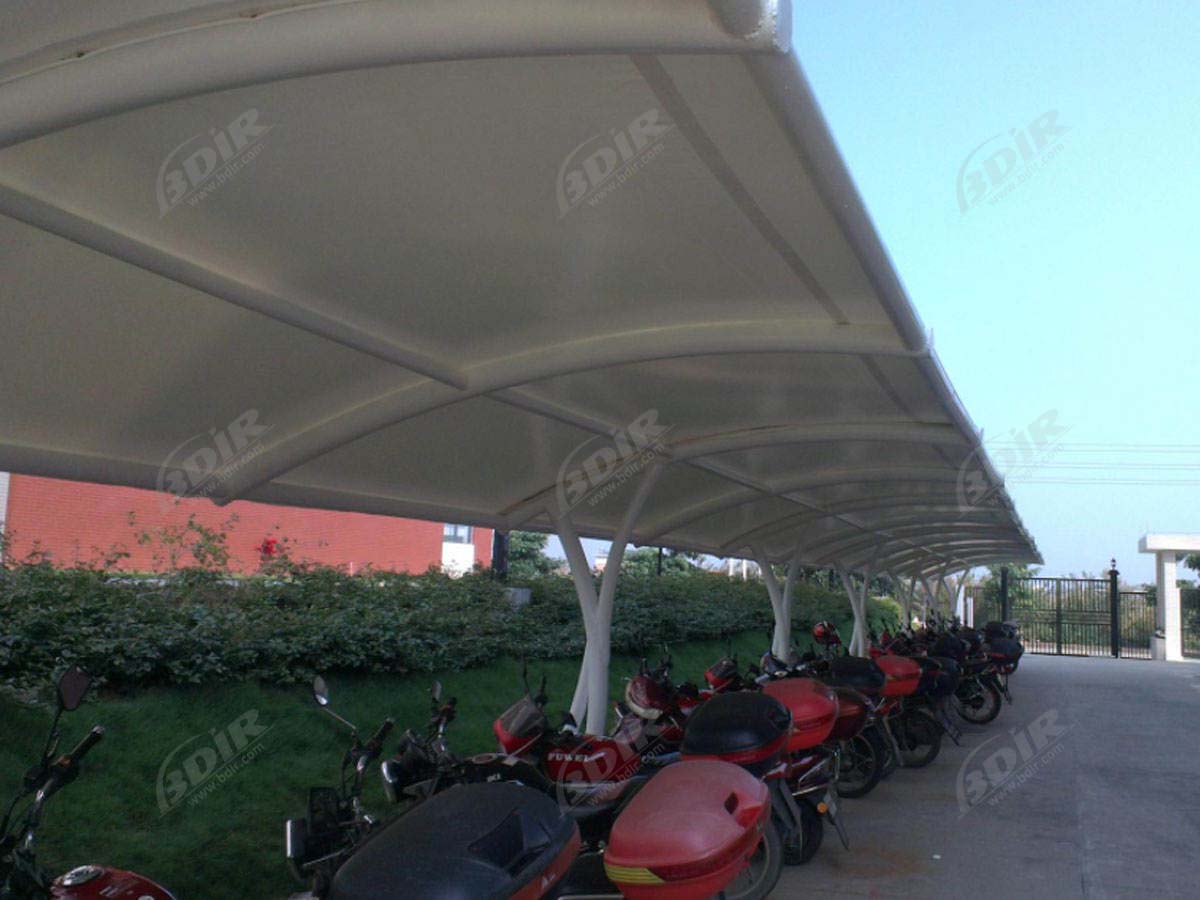

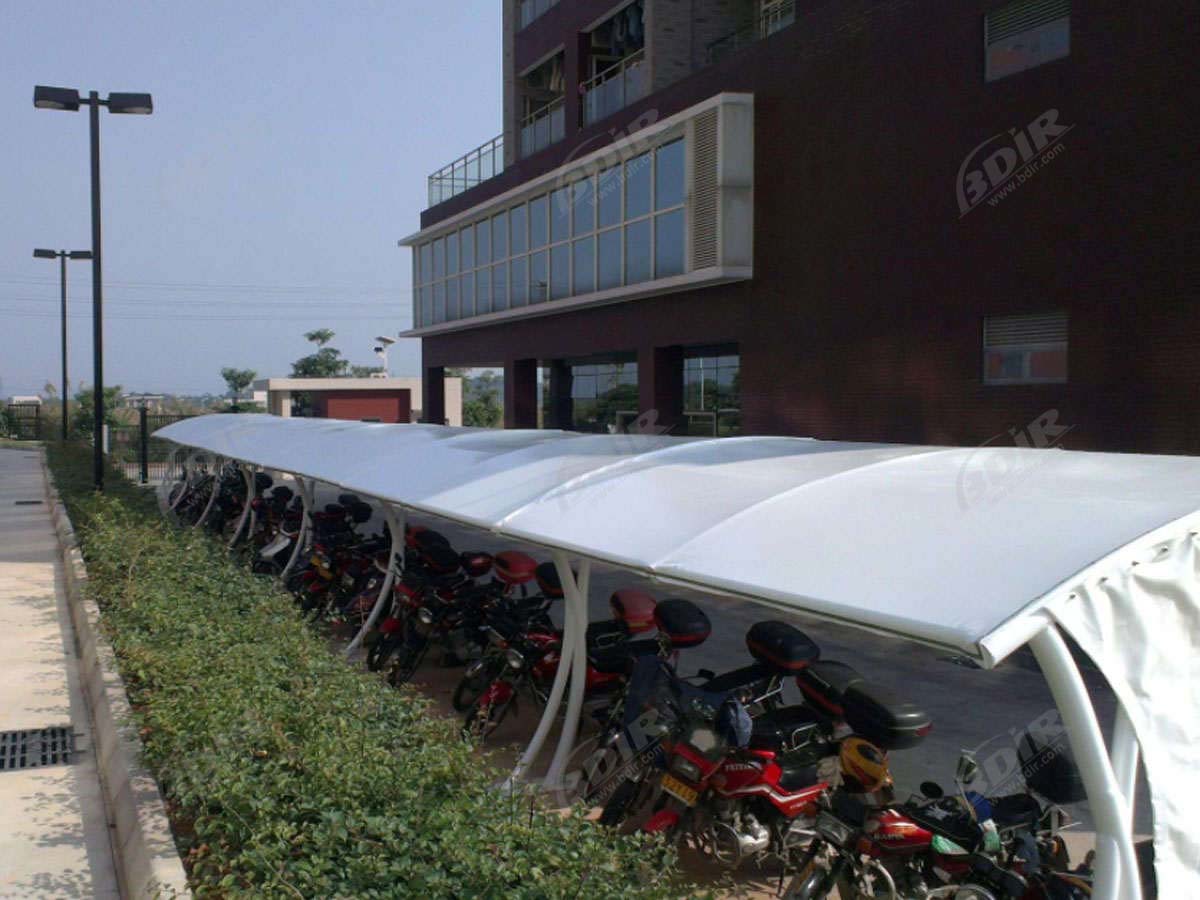

The project is located in a industrial park in Guanzhou City, China. Compared to traditional building, it is more cost-effective and beautiful. Also, the membrane structure has the advantage below:
The tarpaulin material of the membrane structure carport is PVC, PVDF, PTFE polyester, and the biggest feature of the membrane material is high strength, good durability, fire and flame resistance, good self-cleaning, not affected by ultraviolet rays, and has a long service life. Long, generally 15-30 years.
It has high light transmittance, the light transmittance is 13%, the heat reflectivity is 73%, and the heat absorption is very small. It is precisely because of the invention of this epoch-making membrane material that the membrane structure carport has become a modern permanent building.
In addition to the incomparable practical, durable, wind and rain-proof functions of ordinary awnings, the membrane structure awning is a sculpture, a work of art, giving people a beautiful visual enjoyment. Its softness, its curves, its hardness and softness, its rich shape, its whiteness
Specifications
-
√. Large Span: Tensile Structures can create an expansive covered area, exceed to 200m.
-
√. Unique Design: Tensile fabric Structure gives architects, designers, and engineers the opportunity to experiment with form and create visually exciting and iconic structures.
-
√. Various Shape: Changeful supporting structure can make lots of different shapes of tensioned structure with flexible membrane.
-
√. Cost-effective: About 1/3 to 1/2 lower than conventional structures on costs.
-
√. Easy to Install: Faster and more cost-effective in comparison to traditional construction projects.
-
√. Weatherproof: Durable and designed to withstand even the most severe weather conditions. Provide protection from both the rain and sun.
-
√. Excellent Durability: Fabric tensile Structure is characterized by durability and longevity, can be built in different areas around the world, from the frigid arctic pole to the scorching desert heat.
-
√. ECO Friendly: Have high sun reflectivity and low solar absorption. As a result, less energy is used in the building, ultimately reducing the cost of electricity.
-
√. Low maintenance Needs: Tensile membrane Structures require minimal maintenance for clients, whether use of PVC, PVDF, PTFE or ETFE.
-
√. Outstanding Natural Daylighting: Membrane is translucent, In daylight, tension structures could offer rich soft diffused naturally daylight space, and at night, artificial lighting can make it bright and colorful.
-
Design & Model
Installation
 |
Step 1: Design BDiR use the latest tensile structural design software to produce detailed tensile structural designs. Including: BIM model design (building information modeling), finding and load analysis, integrated building design, joint force analysis, membrane cutting analysis, construction process simulation, numerical wind tunnel simulation. |
| Step 2: Membrane Fabrication Membrane fabrication plays an important role in the tensile structure. There are many fabrics (PVC, PVDF, PTFE, ETFE) in the market, they come from all over the world, they have different characteristics and prices, different welding or joining techniques. We will make the best choices from structural design, project location and our customer budget. |
 |
 |
Step 3. Steel Fabrication Tensile structure are made of steel structural members that are welded and painted in our factory. We will conduct the following procedures with high standards: Paint thickness detection, ultrasonic testing, magnetic particle testing, high-strength bolt torque testing, cable pre-tensioning, rust removal , pre-assembly inspection, painting, etc. |
| Step 4: Cable Fabrication Cable and hardware fittings are procured from the most reliable and certified vendors of the industry in compliance with the international quality standards. Cable fabrication are proceed under guidance of our skilled and experienced experts. |
 |
 |
Step 5: Installation The installation of the tension structure is critical to the overall success of the project. We will provide on site installation service. Our project manager will work with the client to coordinate the structure installation on site. Including steel structure installation, membrane lifting and measure tension. If you prefer self-installation, we'll send you detailed instructions so it can be easily installed. |
| Step 6: The Future Our service will not end at the time of delivery and installation! Because we only use the highest quality membrane materials and steel frames, cables and parts. You can rest assured that your new tensile structure is built to last. Besides, Tensile structure does not require much maintenance and we offer a up to 35 year warranty. |
 |
