Membrane Tensile Structure for Commerce, Performance Art Stage - Hanoi, Vietnam

  •

     Date Completed  November, 2012
     Location  Hanoi, Vietnam
     Project Area  300 square meters
     Membrane Material  PVDF
     Fabric Color  White
     Shape  Barrel Vault
     Structure  Q235 Steel, Hot Dip Galvanized
     Warranty  20 Years
     Delivery Time  About 30 Days after confirm deposit
     Payment  T/T, LC
     Brand  BDiR
     Place of Origin  Shenzhen, China



  • INQUIRY NOW
Membrane Tensile Structure for Commerce, Performance Art Stage - Hanoi, Vietnam

Description

The project is located in Hanoi, Vietnam and it is used by the local government for the anniversary of Vietnam's 100-year anniversary.

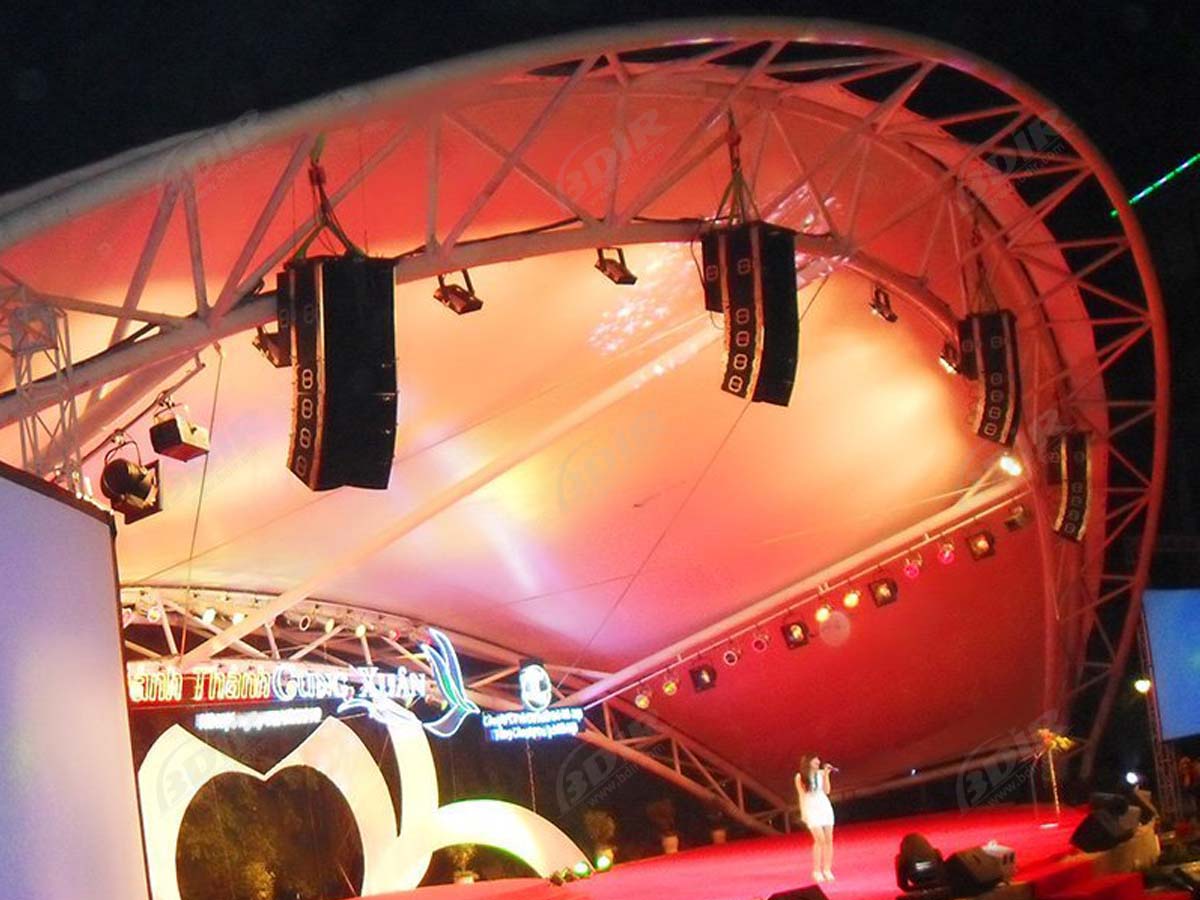

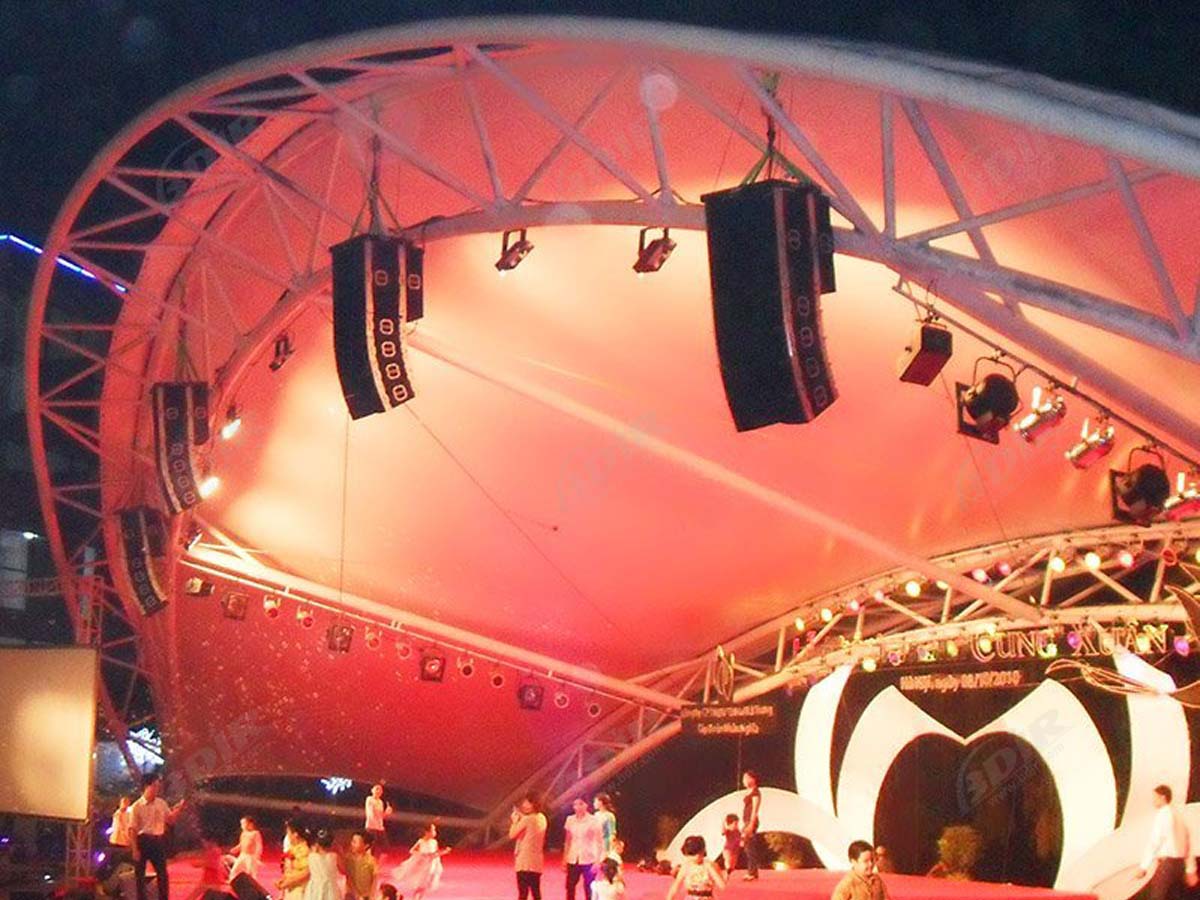

When we have the opportunity to participate in the Vietnam project cooperation, we are very happy that they have chosen us to provide a shaded stage stretch shade canopy. Our design is to construct a circular arc-shaped wide space with steel structures, and the membrane is made of PTFE. The waterproof shade structures roof of the steel frame is reserved for the installation of audio system and light system. The light reflects from the underside of the canopy, giving a beautiful stage effect.

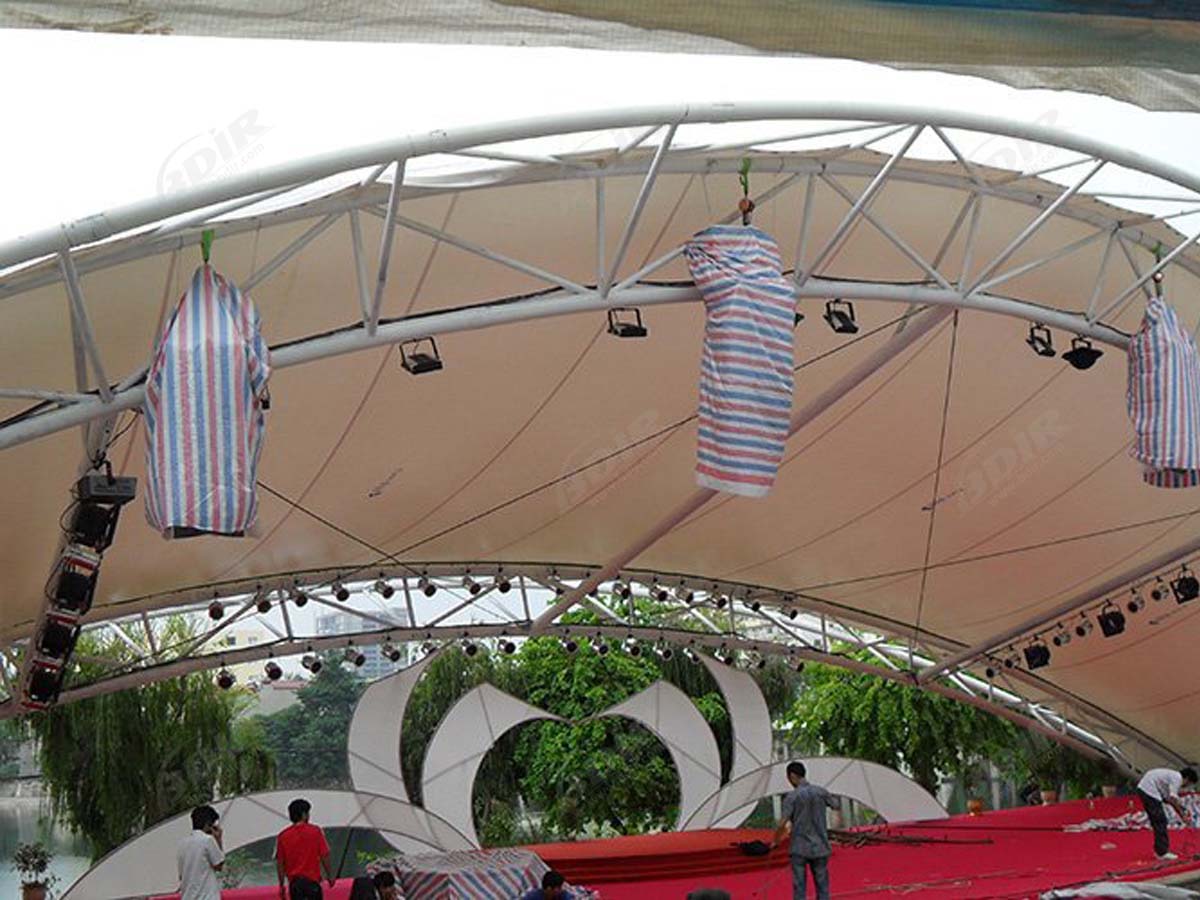

In this project, BDiR arranged professional designers and installation masters to guide on-site installation. Due to the need to replace many places, the textile architecture team met many difficulties. Under the leadership of the company's responsible principal, after two days and one night of renovation planning and installation, finally it was completed. The event can also be held as scheduled, and the customer is very satisfied with our company. We also specially invited the person in charge of our company to participate in this event and took this opportunity to congratulate.


Specifications

    • √. Large Span: Tensile Structures can create an expansive covered area, exceed to 200m.

    • √. Unique Design: Tensile fabric Structure gives architects, designers, and engineers the opportunity to experiment with form and create visually exciting and iconic structures.

    • √. Various Shape: Changeful supporting structure can make lots of different shapes of tensioned structure with flexible membrane.

    • √. Cost-effective: About 1/3 to 1/2 lower than conventional structures on costs.

    • √. Easy to Install: Faster and more cost-effective in comparison to traditional construction projects.

    • √. Weatherproof: Durable and designed to withstand even the most severe weather conditions. Provide protection from both the rain and sun.

    • √. Excellent Durability: Fabric tensile Structure is characterized by durability and longevity, can be built in different areas around the world, from the frigid arctic pole to the scorching desert heat.

    • √. ECO Friendly: Have high sun reflectivity and low solar absorption. As a result, less energy is used in the building, ultimately reducing the cost of electricity.

    • √. Low maintenance Needs: Tensile membrane Structures require minimal maintenance for clients, whether use of PVC, PVDF, PTFE or ETFE.

    • √. Outstanding Natural Daylighting: Membrane is translucent, In daylight, tension structures could offer rich soft diffused naturally daylight space, and at night, artificial lighting can make it bright and colorful.



Design & Model

Installation

       Step 1: Design

       BDiR use the latest tensile structural design software to produce
       detailed tensile structural designs.


       Including:
       BIM model design (building information modeling),
       finding and load analysis,  integrated building design,
       joint force analysis, membrane cutting analysis,
       construction process simulation, numerical wind tunnel simulation.
    Step 2: Membrane Fabrication

    Membrane fabrication plays an important role in the tensile structure.

    There are many fabrics (PVC, PVDF, PTFE, ETFE) in the market, they come from all over the world, they have different characteristics and prices, different welding or joining techniques. We will make the best choices from structural design, project location and our customer budget.
      Step 3. Steel Fabrication

      Tensile structure are made of steel structural members that are welded
      and painted in our factory.


      We will conduct the following procedures with high standards:
      Paint thickness detection, ultrasonic testing,
      magnetic particle testing,
    high-strength bolt torque testing,
      cable pre-tensioning, rust removal ,

      pre-assembly inspection, painting, etc.

    Step 4: Cable Fabrication

    Cable and hardware fittings are procured from the most reliable and certified vendors of the industry in compliance with the international quality standards.

    Cable fabrication are proceed under guidance of our skilled and experienced experts.
      Step 5: Installation

      The installation of the tension structure is critical to the overall success
      of the project.


      We will provide on site installation service. Our project manager will work
      with the client to coordinate the structure installation on site.  Including
      steel structure installation, membrane lifting and measure tension. If you
      prefer self-installation, we'll send you detailed instructions so it can be
      easily installed.


    Step 6: The Future

    Our service will not end at the time of delivery and installation!

    Because we only use the highest quality membrane materials and steel frames, cables and parts. You can rest assured that your new tensile structure is built to last. Besides, Tensile structure does not require much maintenance and we offer a up to 35 year warranty.



Reviews

  •
    Schumucker Hamernik, Engineering Manager

    Although it is a factory in China, far away from us, we are very impressed with the professionalism of BDiR. They provide a complete design solution and assist us in the installation, what's more,  extremely cost effective. "
