PVDF Fabric Tensile Structure for Outdoor Gardens & Parks - Suzhou, China

Date Completed	October, 2017
Location	Suzhou, China
Project Area	200 square meters
Membrane Material	PVDF
Fabric Color	White
Shape	Cone, Hypar
Structure	Q235 Steel, Hot Dip Galvanized
Warranty	20 Years
Delivery Time	About 30 Days after confirm deposit
Payment	T/T, LC
Brand	BDiR
Place of Origin	Shenzhen, China

INQUIRY NOW

Hot Search: fabric construction, shade structures for backyards, tensile structure manufacturers, tensile structure examples, tensile structure details pdf,

RELATED PROJECTS

Million Sunflower Garden Tensile Canopy Structures - Nansha, China

Children's Park Tensile Roof Structure, Playground Canopy - Guangzhou, China

Tensile Roof Structure for Outdoor Restaurant - Conghua, China

Amphitheater Tensile Shade Structure in Wuyuan Bay Music Island - Xiamen, China

Inverted Umbrella Colorful Fabric Tensile Structure in Commercial Street - Nanjing, China

Tensile Fabric Structure for Outdoor Water Parks - Ningbo, China

Stadium Grandstand Tensile Canopy Structure - Khartoum, Sudan

Cone Canopy & Hypar Tensile Fabric Structure in Emerald Bay Theme Park - Zhangzhou, China

Friendship Book City Car Parking Entrance Shade Structure - Guangzhou, China

Moon Bay Plaza Hypar & Conical Tensile Structure - Shenzhen, China

News at BDiR

Foshan Century Lotus Sports Center: A Masterpiece of Membrane Roof Design

Tensile Fabric Structure Installation: Considerations for Installing Tensile Membrane

What is a Tensile Fabric Structure? Why Load Analysis is Essential

Tensile Membrane Structures: Innovation, Aesthetics, and Performance

Membrane Structure Tennis Court at China Mobile Guangzhou HQ

PVDF Fabric Tensile Structure for Outdoor Gardens & Parks - Suzhou, China

Description

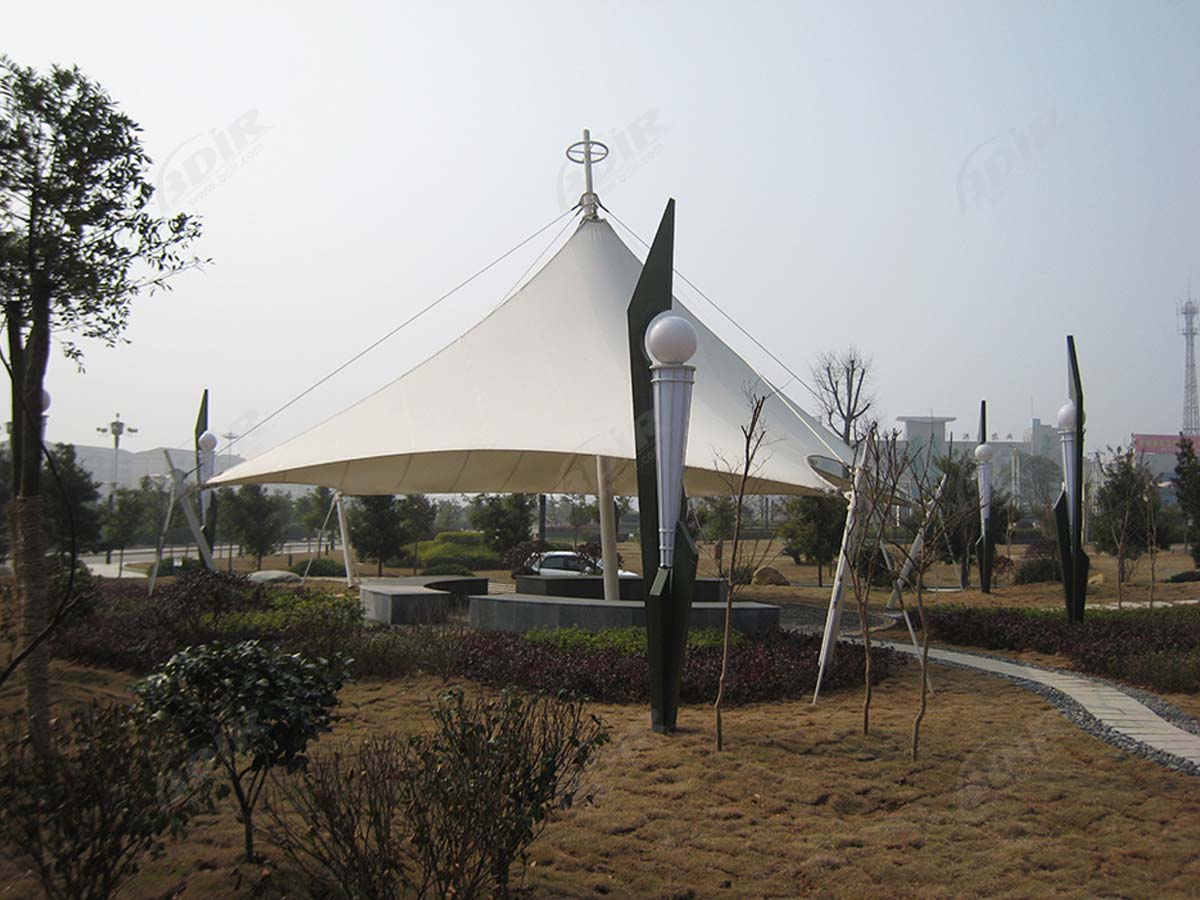

In October 2017, BDiR completed the project perfectly. This waterproof shade structures is located in a local park.

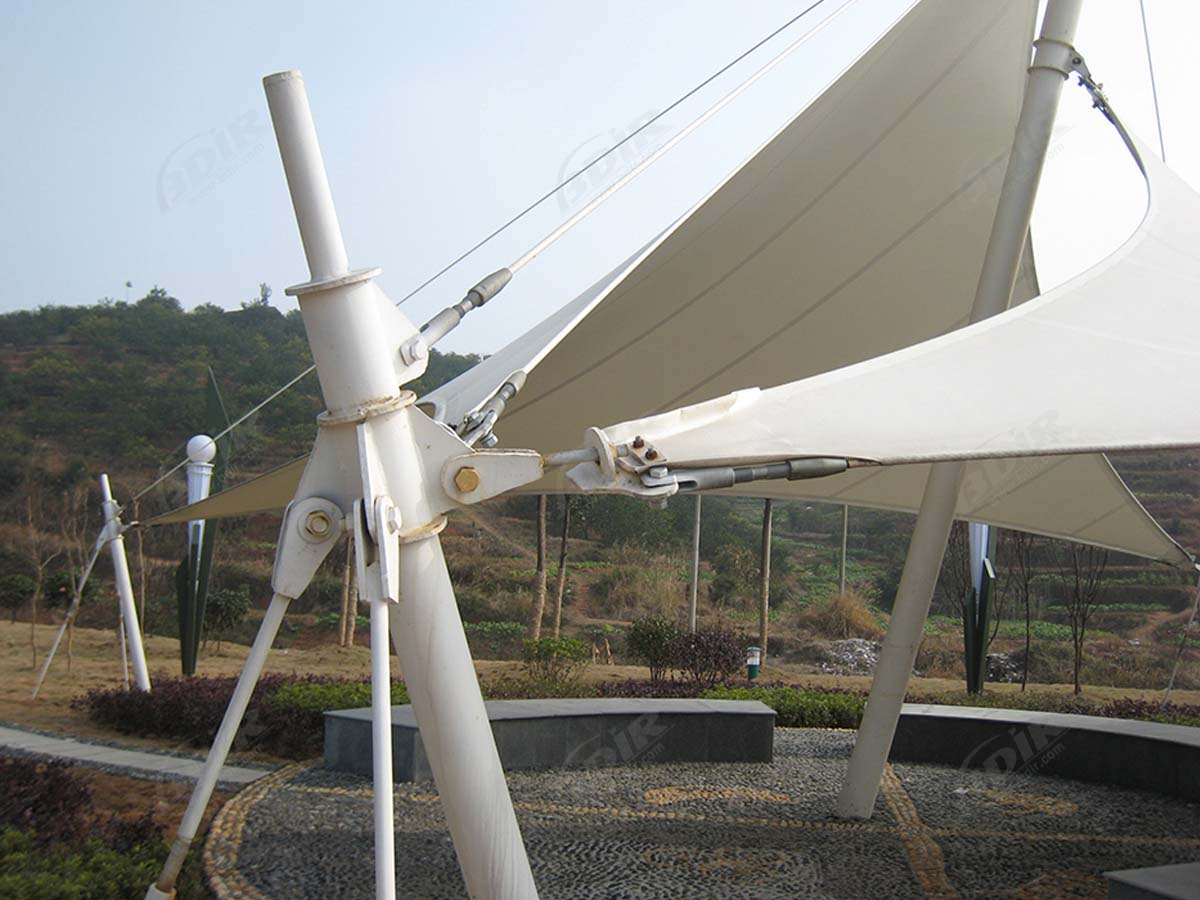

The canopy membrane is made of Italian imported double-sided PVDF super-self-cleaning coating material. The steel structure is designed for a service life of 20 years. All steel components shall be hot-dip galvanized, and the damage to the coating during transportation and installation shall be repaired according to the degree of damage. The welding slag shall be removed from the assembled parts and the epoxy inorganic zinc-rich bottom shall be applied. Paint + epoxy cloud iron intermediate paint + fluorocarbon roof coat. in order to strengthen construction control, our company has set management objectives for control factors such as project quality, construction schedule, safety, on-site standardization management and service. Because of this, we can achieve our goals well.

Providing customers with efficient, high quality and value-added services is the eternal goal of BDiR We believe that we are your best choice.

Specifications

- √. Large Span: Tensile Structures can create an expansive covered area, exceed to 200m.
- √. Unique Design: Tensile fabric Structure gives architects, designers, and engineers the opportunity to experiment with form and create visually exciting and iconic structures.
- √. Various Shape: Changeful supporting structure can make lots of different shapes of tensioned structure with flexible membrane.
- √. Cost-effective: About 1/3 to 1/2 lower than conventional structures on costs.
- √. Easy to Install: Faster and more cost-effective in comparison to traditional construction projects.
- √. Weatherproof: Durable and designed to withstand even the most severe weather conditions. Provide protection from both the rain and sun.
- √. Excellent Durability: Fabric tensile Structure is characterized by durability and longevity, can be built in different areas around the world, from the frigid arctic pole to the scorching desert heat.
- √. ECO Friendly: Have high sun reflectivity and low solar absorption. As a result, less energy is used in the building, ultimately reducing the cost of electricity.
- √. Low maintenance Needs: Tensile membrane Structures require minimal maintenance for clients, whether use of PVC, PVDF, PTFE or ETFE.
- √. Outstanding Natural Daylighting: Membrane is translucent, In daylight, tension structures could offer rich soft diffused naturally daylight space, and at night, artificial lighting can make it bright and colorful.

Design & Model

Installation

	Step 1: Design BDiR use the latest tensile structural design software to produce detailed tensile structural designs. Including: BIM model design (building information modeling), finding and load analysis, integrated building design, joint force analysis, membrane cutting analysis, construction process simulation, numerical wind tunnel simulation.
Step 2: Membrane Fabrication Membrane fabrication plays an important role in the tensile structure. There are many fabrics (PVC, PVDF, PTFE, ETFE) in the market, they come from all over the world, they have different characteristics and prices, different welding or joining techniques. We will make the best choices from structural design, project location and our customer budget.
	Step 3. Steel Fabrication Tensile structure are made of steel structural members that are welded and painted in our factory. We will conduct the following procedures with high standards: Paint thickness detection, ultrasonic testing, magnetic particle testing, high-strength bolt torque testing, cable pre-tensioning, rust removal , pre-assembly inspection, painting, etc.
Step 4: Cable Fabrication Cable and hardware fittings are procured from the most reliable and certified vendors of the industry in compliance with the international quality standards. Cable fabrication are proceed under guidance of our skilled and experienced experts.

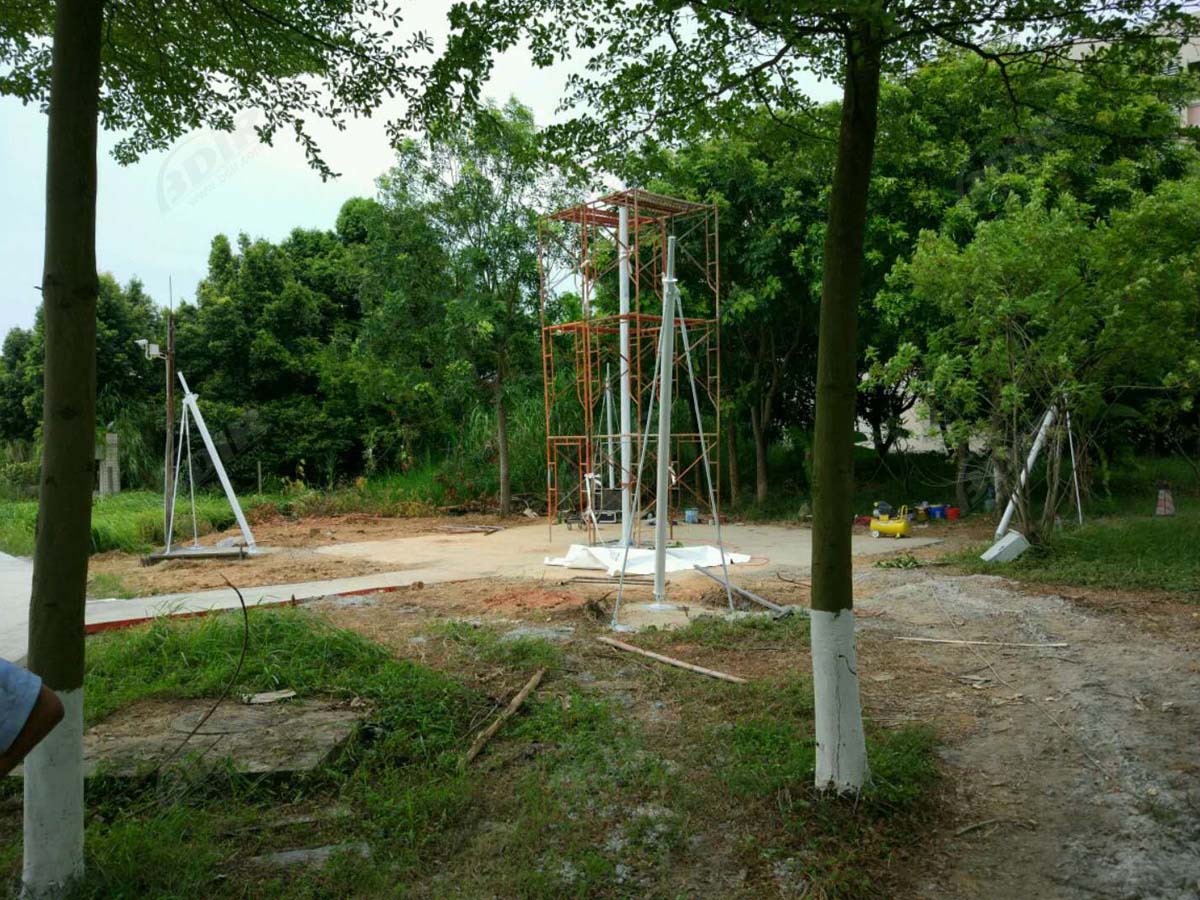

	Step 5: Installation The installation of the tension structure is critical to the overall success of the project. We will provide on site installation service. Our project manager will work with the client to coordinate the structure installation on site. Including steel structure installation, membrane lifting and measure tension. If you prefer self-installation, we'll send you detailed instructions so it can be easily installed.
Step 6: The Future Our service will not end at the time of delivery and installation! Because we only use the highest quality membrane materials and steel frames, cables and parts. You can rest assured that your new tensile structure is built to last. Besides, Tensile structure does not require much maintenance and we offer a up to 35 year warranty.
