Moon Bay Plaza Hypar & Conical Tensile Structure - Shenzhen, China

Date Completed	February, 2017
Location	Shenzhen, China
Project Area	300 square meters
Membrane Material	PTFE
Fabric Color	White
Shape	Cone, Hypar
Structure	Q235 Steel, Hot Dip Galvanized
Warranty	20 Years
Delivery Time	About 30 Days after confirm deposit
Payment	T/T, LC
Brand	BDiR
Place of Origin	Shenzhen, China

INQUIRY NOW

Hot Search: fabric tensile structure, membrane tensile structure, tension fabric buildings cost, tensile cable structures, tensile structures details dwg, hypar structure,

RELATED PROJECTS

Nan Sha Bird Park Tensile Shade Structure - Nansha, China

Children's Park Tensile Roof Structure, Playground Canopy - Guangzhou, China

Hypar & Umbrella Fabric Tensile Structure - Weihai International Bathing Beach

PVDF Fabric Tensile Structure for Outdoor Gardens & Parks - Suzhou, China

Shenzhen Bay Park Tensile Fabric Structure for Bicycle Parking Shade

PTFE Membrane Material Tensile Structure for Commercial Center, Macau Fisherman's Wharf

Venice International Hotel Tensile Fabric Roof Structure, Swimming Pool Shade Sails - Shenzhen, China

Fabric Tensile Walkway Structure for Huanghua Airport Terminal - Changsha, China

Stadium Grandstand Tensile Canopy Structure - Khartoum, Sudan

Tensile Structure & Dome Architecture for Exhibitions - Singapore

News at BDiR

Foshan Century Lotus Sports Center: A Masterpiece of Membrane Roof Design

Tensile Fabric Structure Installation: Considerations for Installing Tensile Membrane

What is a Tensile Fabric Structure? Why Load Analysis is Essential

Tensile Membrane Structures: Innovation, Aesthetics, and Performance

Membrane Structure Tennis Court at China Mobile Guangzhou HQ

Moon Bay Plaza Hypar & Conical Tensile Structure - Shenzhen, China

Description

Nanao, located in Shenzhen, China, seafood street is a place tourist must visit arrived Nanao. It is a historic coastal town and a local tourist attraction.

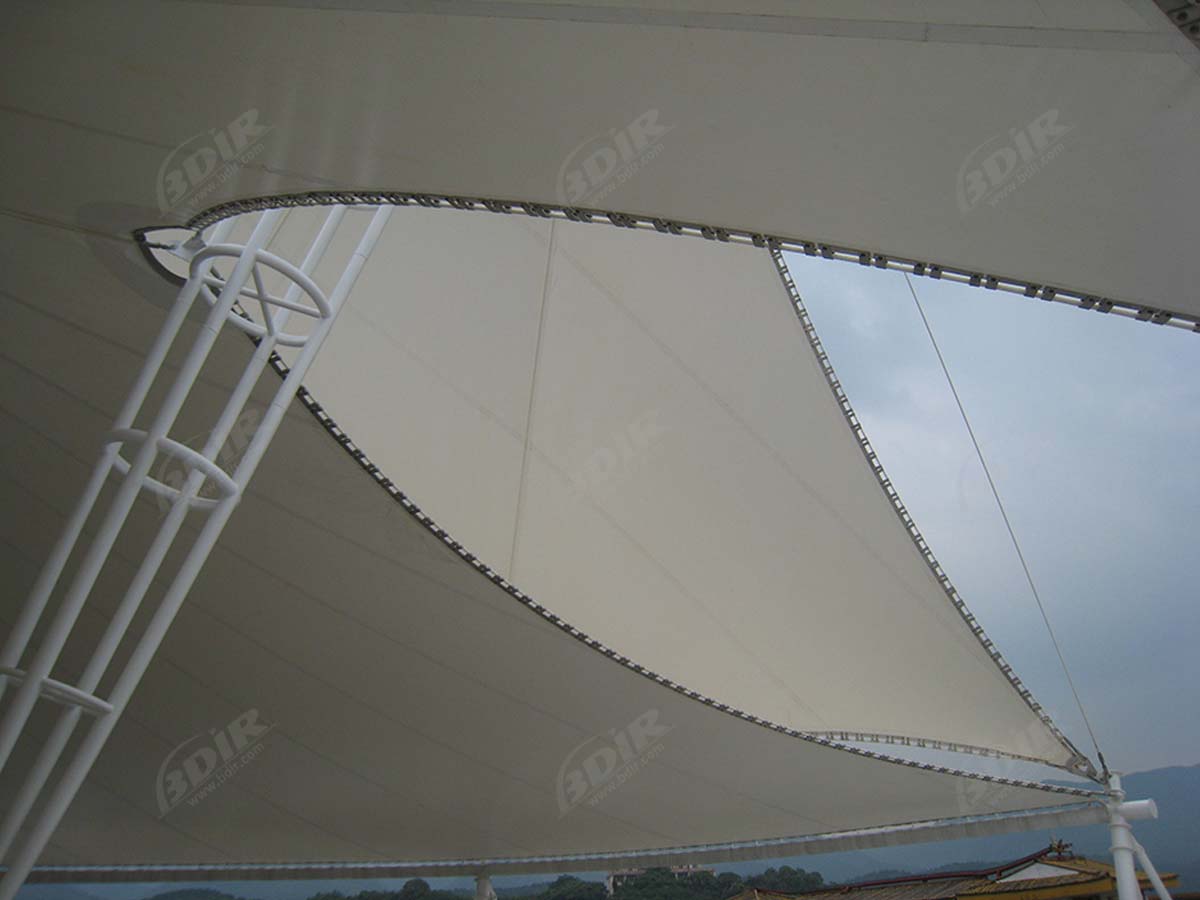

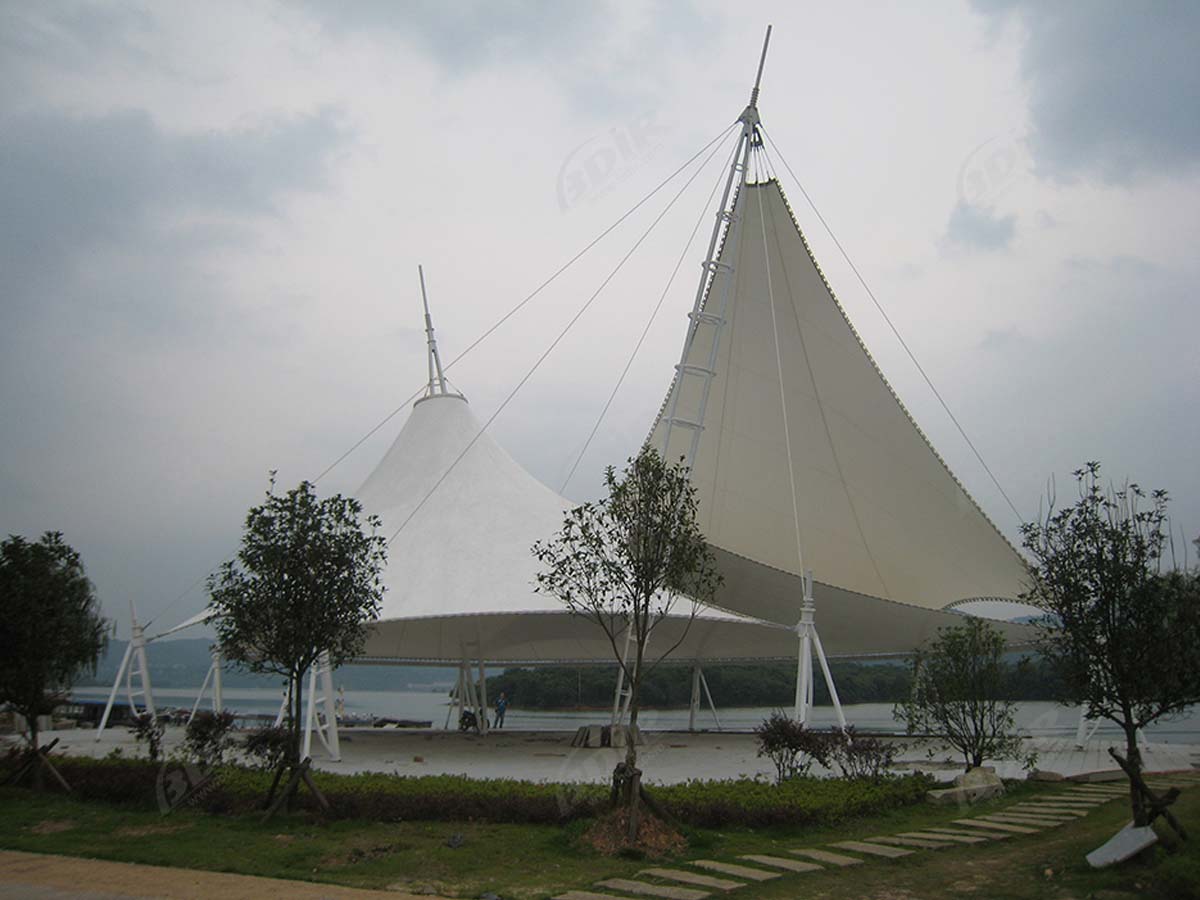

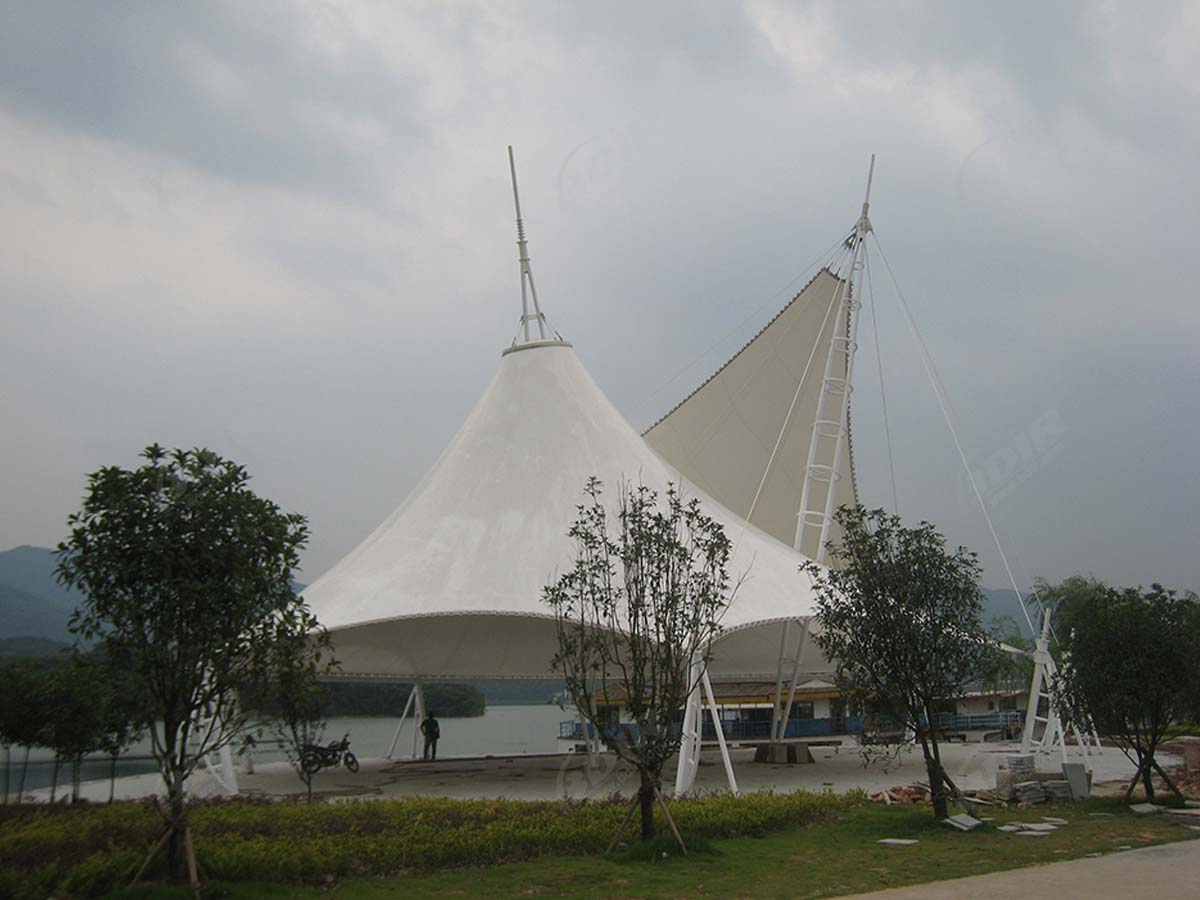

In February 2017, BDiR installed a number of tensile awnings for the Moon Bay Plaza in Nanao. The white tensile structures and the natural landscape of the sea provide a better experience for visitors to enjoy themselves.

Because the project is in a coastal city, we need to consider the typhoon factor in design process. The amount of steel used has increased compared to the conventional frame. After the whole steel structure is assembled and spliced on the ground, the primer is sprayed and then lifted by the crane. After the main body is installed, the membrane is installed. The membrane is PVDF which imported from Germany, has very good self-cleaning property.

Membrane structure is a perfect combination of architectural and structural architecture. It is high-strength flexible thin-film materials and support system combine to form a stable surface has certain stiffness and can withstand a certain load of space outside the structure. Its owns features as shape freedom lightweight, fire-retardant, making easy to install, energy-efficient, safe, etc., and thus it has been widely applied throughout the world.

Specifications

- √. Large Span: Tensile Structures can create an expansive covered area, exceed to 200m.
- √. Unique Design: Tensile fabric Structure gives architects, designers, and engineers the opportunity to experiment with form and create visually exciting and iconic structures.
- √. Various Shape: Changeful supporting structure can make lots of different shapes of tensioned structure with flexible membrane.
- √. Cost-effective: About 1/3 to 1/2 lower than conventional structures on costs.
- √. Easy to Install: Faster and more cost-effective in comparison to traditional construction projects.
- √. Weatherproof: Durable and designed to withstand even the most severe weather conditions. Provide protection from both the rain and sun.
- √. Excellent Durability: Fabric tensile Structure is characterized by durability and longevity, can be built in different areas around the world, from the frigid arctic pole to the scorching desert heat.
- √. ECO Friendly: Have high sun reflectivity and low solar absorption. As a result, less energy is used in the building, ultimately reducing the cost of electricity.
- √. Low maintenance Needs: Tensile membrane Structures require minimal maintenance for clients, whether use of PVC, PVDF, PTFE or ETFE.
- √. Outstanding Natural Daylighting: Membrane is translucent, In daylight, tension structures could offer rich soft diffused naturally daylight space, and at night, artificial lighting can make it bright and colorful.

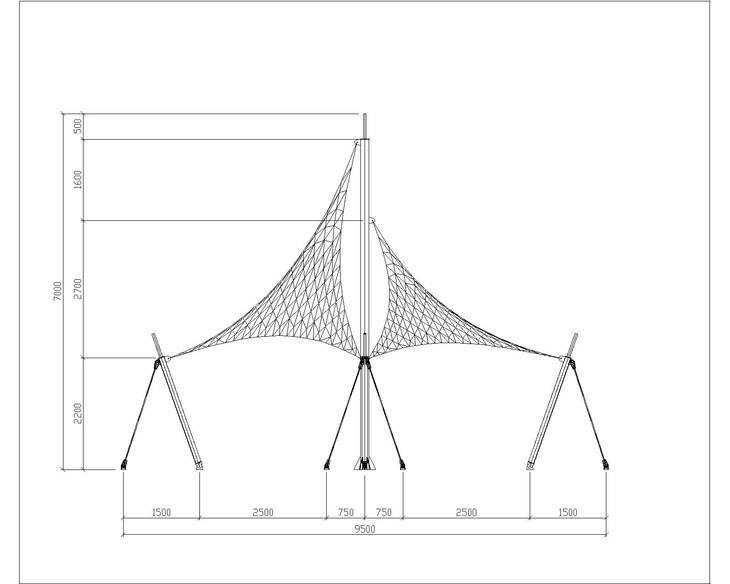

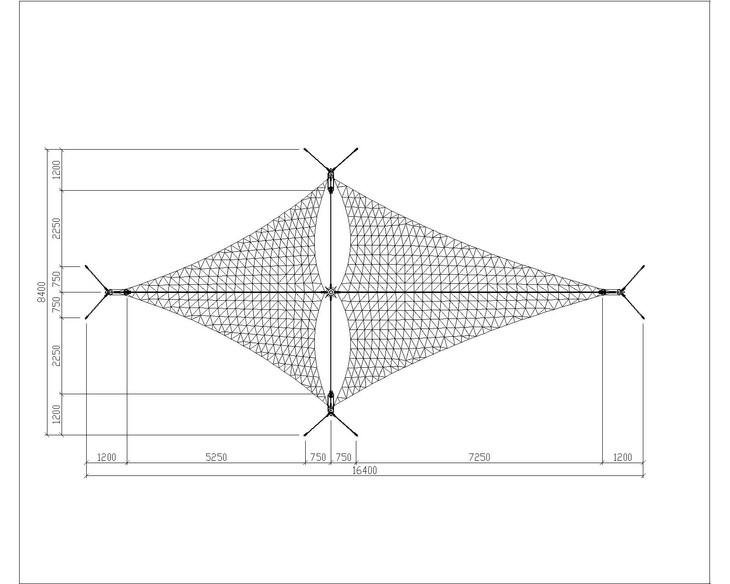

Design & Model

Installation

	Step 1: Design BDiR use the latest tensile structural design software to produce detailed tensile structural designs. Including: BIM model design (building information modeling), finding and load analysis, integrated building design, joint force analysis, membrane cutting analysis, construction process simulation, numerical wind tunnel simulation.
Step 2: Membrane Fabrication Membrane fabrication plays an important role in the tensile structure. There are many fabrics (PVC, PVDF, PTFE, ETFE) in the market, they come from all over the world, they have different characteristics and prices, different welding or joining techniques. We will make the best choices from structural design, project location and our customer budget.
	Step 3. Steel Fabrication Tensile structure are made of steel structural members that are welded and painted in our factory. We will conduct the following procedures with high standards: Paint thickness detection, ultrasonic testing, magnetic particle testing, high-strength bolt torque testing, cable pre-tensioning, rust removal , pre-assembly inspection, painting, etc.
Step 4: Cable Fabrication Cable and hardware fittings are procured from the most reliable and certified vendors of the industry in compliance with the international quality standards. Cable fabrication are proceed under guidance of our skilled and experienced experts.
	Step 5: Installation The installation of the tension structure is critical to the overall success of the project. We will provide on site installation service. Our project manager will work with the client to coordinate the structure installation on site. Including steel structure installation, membrane lifting and measure tension. If you prefer self-installation, we'll send you detailed instructions so it can be easily installed.
Step 6: The Future Our service will not end at the time of delivery and installation! Because we only use the highest quality membrane materials and steel frames, cables and parts. You can rest assured that your new tensile structure is built to last. Besides, Tensile structure does not require much maintenance and we offer a up to 35 year warranty.
